1
Engine displacement
650
2
Model
PEGASO
3
Year
2005
4
Trim
Pegaso Strada - Trail IE
5
Parts Catalog
Front body II
6
Parts Diagram
Parts Catalog
Central stand
by
Ignition unit
Front body II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
31
31
31
32
32
32
33
33
33
34
34
34
35
35
36
36
37
38
39
1
Tank cover
AP8178806
Not Available
2
Cover base
AP8178899
Not Available
3
Porte-documents
AP8104839
$17,74 Unit Price incl. VAT
4
Fuel tank cover
AP8178900
Not Available
5
Tab
AP8144682
Not Available
6
Pl.fix.selle pass.
AP8102947
$15,98 Unit Price incl. VAT
7
RH Frame, grey
AP8178809
Not Available
7
Corniche Droit noire
AP8179351
$1,43 Unit Price incl. VAT
8
Corniche Gauche noire
AP8179352
$1,43 Unit Price incl. VAT
8
Corniche Gauche gris
AP8178808
$1,43 Unit Price incl. VAT
9
Front fairing cable
AP8114482
Not Available
10
Tapis en caoutchou
AP8178807
$3,89 Unit Price incl. VAT
11
Ressort coffre AV.
AP8161050
$1,10 Unit Price incl. VAT
12
Spring
AP8161030
Not Available
13
Vis
AP8121184
$3,70 Unit Price incl. VAT
14
Damper
AP8104890
Not Available
15
Vis taraud pour plast. Inox
AP8150413
$0,08 Unit Price incl. VAT
16
Caoutchouc avant latéral;
AP8144087
$5,38 Unit Price incl. VAT
17
Filler cap gasket
AP8144684
Not Available
18
Vis
AP8152226
$3,65 Unit Price incl. VAT
19
RH windshield support, grey
AP8184381
Not Available
19
RH windshield support
AP8178793
$215,79 Unit Price incl. VAT
19
RH windshield support, black
AP8179349
Not Available
20
Support coupole G noire
AP8179350
$9,80 Unit Price incl. VAT
20
LH windshield support
AP8178794
Not Available
20
LH windshield support, grey
AP8184382
Not Available
21
Clip
AP8102381
$1,09 Unit Price incl. VAT
22
Pin
AP8161056
Not Available
23
Pin
AP8161055
Not Available
24
Rondelle pour arbres
AP8150450
$0,25 Unit Price incl. VAT
25
Vis taraud pour plast. Inox
AP8150444
$0,17 Unit Price incl. VAT
26
Caoutchouc champignon;
AP8220488
$4,92 Unit Price incl. VAT
27
Coil bush
AP8161077
Not Available
28
Raccord à deux voies
AP8101944
$0,76 Unit Price incl. VAT
29
Fuel pipe 5,5x10
AP8120952
Not Available
30
VITE TCEI M6X16 INOX
AP8150521
$3,65 Unit Price incl. VAT
31
Douille
AP8221129
$3,65 Unit Price incl. VAT
32
Vis
AP8152479
$3,65 Unit Price incl. VAT
33
Douille entretoise
AP8161082
$2,09 Unit Price incl. VAT
34
Vis à tête bombée à six pans creux
AP8152267
$0,34 Unit Price incl. VAT
35
Vis bride
AP8152246
$0,27 Unit Price incl. VAT
36
Bush
AP8152478
Not Available
37
Glove comp.door gasket
AP8144570
Not Available
38
Adhesive sponge 15x8
AP8117004
$5,38 Unit Price incl. VAT
39
Acoustic insulation panel
854616
Not Available

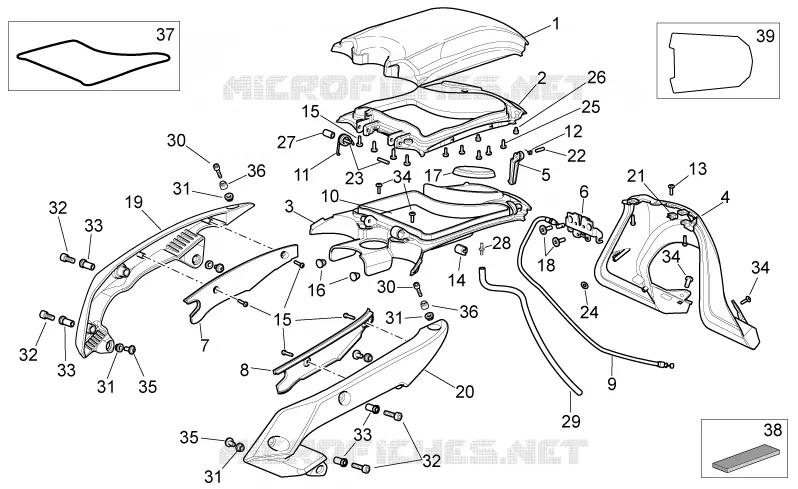

Find the detailed Front body II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
