Engine displacement
650
2
Model
PEGASO
3
Year
2005
4
Trim
Pegaso Strada - Trail IE
5
Parts Catalog
Rear brake system
6
Parts Diagram
Parts Catalog
Gear box selector
by
Steering-Trail Version
Rear brake system
1
2
3
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
16
16
16
17
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
34
1
Rear brake lever
AP8146934
Not Available
2
Rear brake lever pin
AP8121223
Not Available
3
Joint torique
AP8144007
$0,81 Unit Price incl. VAT
4
Rondelle
AP8150020
$0,08 Unit Price incl. VAT
5
Res. rap. levier frein
AP8125849
$5,38 Unit Price incl. VAT
6
Ecrou autofr. bas
AP8150431
$0,34 Unit Price incl. VAT
7
screw
AP8150071
Not Available
8
Ecrou
AP8150026
$0,16 Unit Price incl. VAT
9
Microinterrupteur
AP8112996
$30,28 Unit Price incl. VAT
10
Fork
852470
Not Available
10
Fourchette
AP8101968
$5,09 Unit Price incl. VAT
11
Clip fourc.b.vitesses
AP8201301
$2,24 Unit Price incl. VAT
12
Joint torique
AP8120178
$0,08 Unit Price incl. VAT
13
Pump rod
852469
Not Available
13
Pump rod
AP8113276
Not Available
14
Maît.cyl.frein AR
AP8133643
$60,39 Unit Price incl. VAT
15
Raccord pompe arrière
AP8213057
$6,80 Unit Price incl. VAT
16
Rondelle
AP8113004
$0,34 Unit Price incl. VAT
17
Vis tuyau huile
AP8113003
$3,65 Unit Price incl. VAT
18
Réserv.huile freins
AP8133873
$15,98 Unit Price incl. VAT
19
Rear brake hose cover
AP8179203
Not Available
20
Vis à tête bombée à six pans creux
AP8152267
$0,34 Unit Price incl. VAT
21
Ecrou autofr. bas
AP8150311
$0,08 Unit Price incl. VAT
22
Vis bride M6X16
AP8152278
$1,77 Unit Price incl. VAT
23
Rubber pipe
AP8144151
Not Available
24
Collier
AP8101595
$0,32 Unit Price incl. VAT
25
Rear brake hose
AP8133757
Not Available
26
Rear brake caliper
AP8133879
Not Available
26
Rear brake caliper, gold
AP8133820
Not Available
27
Air bleed valve
AP8113549
$32,28 Unit Price incl. VAT
28
Ressort+plaque
AP8133827
$10,76 Unit Price incl. VAT
29
Pads pair
AP8133911
Not Available
29
Pads pair
AP8133825
Not Available
30
Axe +goupille pince
AP8133826
$5,74 Unit Price incl. VAT
31
Rondelle évent.ext.
AP8150284
$5,38 Unit Price incl. VAT
32
Cable-guide
AP8144219
Not Available
33
Rear brake lever
852468
Not Available
34
Caoutchouc
AP8220189
$8,16 Unit Price incl. VAT

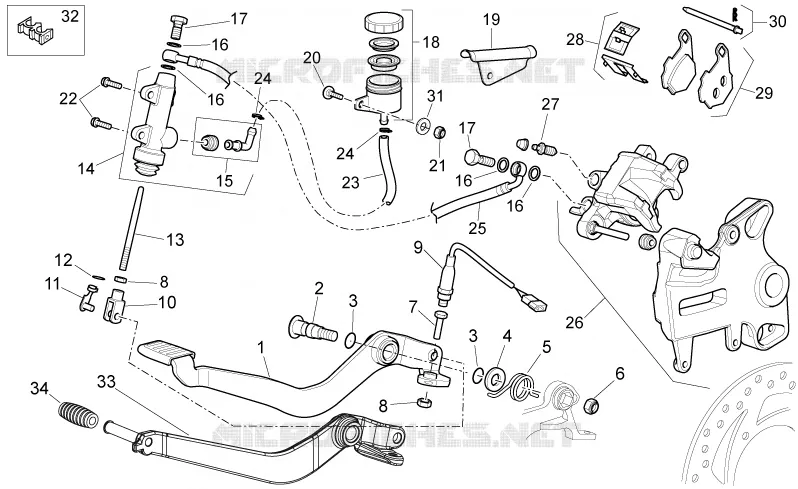

Find the detailed Rear brake system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
