1
Engine displacement
650
2
Model
PEGASO
3
Year
2005
4
Trim
Pegaso Strada - Trail IE
5
Parts Catalog
Rear wheel II
6
Parts Diagram
Parts Catalog
Steering-Strada Version
by
Crankcase I
Rear wheel II
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
1
FLAP RUOTA POSTERIORE 17
AP8109281
$13,53 Unit Price incl. VAT
2
Tyre
0000000
Not Available
3
Tyre
0000000
Not Available
4
Chain ring Z=44
AP8107167
Not Available
5
Rear wheel
AP8128183
Not Available
6
Rayon
AP8108759
$6,30 Unit Price incl. VAT
7
Wheel D17"
AP8108471
Not Available
8
Douille entretoise externe
AP8125949
$3,68 Unit Price incl. VAT
9
Entretoise interne
AP8128185
$8,48 Unit Price incl. VAT
10
Porte-couronne cpl.
AP8107160
$133,48 Unit Price incl. VAT
11
Rear clutch
AP8125941
Not Available
12
Bearing 6004-2RS D20x42x12
AP8128186
Not Available
13
Circlip d42
AP8128187
Not Available
14
Circlip d47
AP8125805
$3,65 Unit Price incl. VAT
15
Bague d'étanchéité
AP8128188
$3,58 Unit Price incl. VAT
16
Bague d'étanchéité
AP8125841
$3,70 Unit Price incl. VAT
17
Flexible coupling rubber
AP8144758
Not Available
18
Nipples
AP8108672
$6,30 Unit Price incl. VAT
19
Rear brake disc
AP8113486
Not Available
20
Vis
AP8152156
$0,25 Unit Price incl. VAT
21
Chaîne
AP8107168
$164,33 Unit Price incl. VAT
22
Ecrou autobloqu.
AP8152300
$0,34 Unit Price incl. VAT
23
Vis bride
AP8152289
$3,65 Unit Price incl. VAT

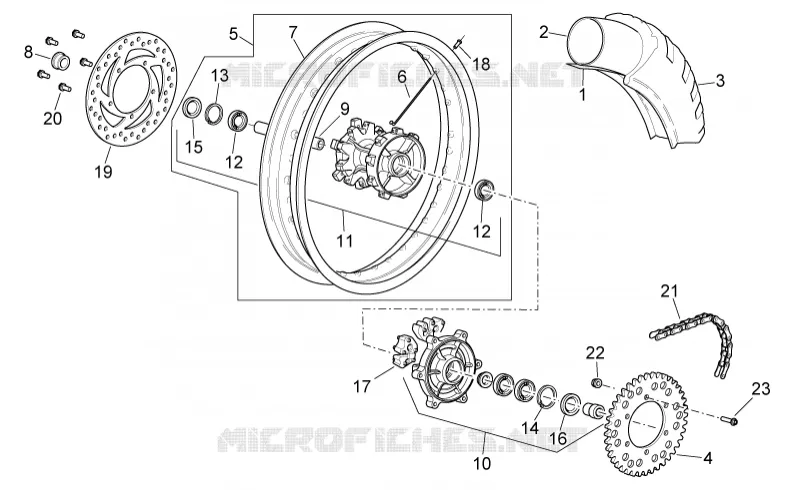

Find the detailed Rear wheel II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
