Parts Catalog
Electrical system
6
Parts Diagram
Parts Catalog
Lights
by
Decal set-Use+maintenance book
Electrical system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
1
Main wiring harness
AP8910186
Not Available
1
Main wiring harness
AP8910185
Not Available
2
Battery
AP8910182
Not Available
3
Main switch
AP8910193
Not Available
4
Coil
AP8910171
Not Available
5
CDI unit assy
AP8910170
Not Available
6
Diod rectifier+Voltage reg.
AP8910184
Not Available
7
Resistor Module
AP8910197
Not Available
8
Relay
AP8910196
Not Available
9
Screw w/ flange M6x22
AP8910430
Not Available
10
Oil reserve indicator
AP8910192
Not Available
11
Level sensor
AP8910195
Not Available
12
Hose clamp L200
AP8910324
Not Available
13
Screw w/ flange M6x16
AP8910427
Not Available
14
Self-tap screw
AP8910359
Not Available
15
Screw w/ flange M6x12
AP8910426
Not Available
16
Toolkit
AP8910245
Not Available
17
Hose clamp LR-220H
AP8910328
Not Available
18
Flasher unit
AP8910538
Not Available
19
Notched washer
AP8910559
Not Available
20
Horn
AP8910526
Not Available
21
Position pilot light
AP8910570
Not Available
22
Hight-beam indic.
AP8910569
Not Available
23
Hazzard indicator
AP8910568
Not Available
24
Flasher unit
AP8910537
Not Available
25
Fuse
AP8910483
Not Available

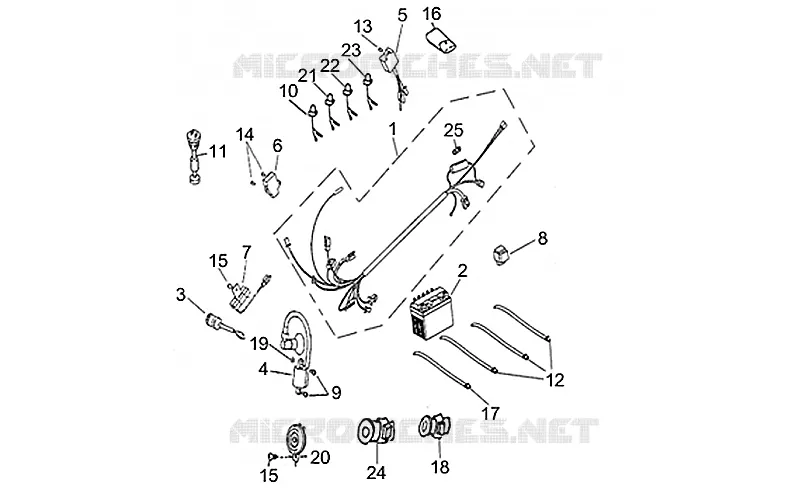

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
