Engine displacement
100
2
Model
QUASAR
3
Year
2003
4
Trim
Quasar
5
Parts Catalog
Rear brake
6
Parts Diagram
Parts Catalog
Front brake
by
Handlebar
Rear brake
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
21
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
36
37
37
38
38
39
40
40
41
42
43
1
Maintenance
AP8910218
Not Available
2
Spacer
AP8910219
Not Available
3
Bearing 6006ZZ
AP8910449
Not Available
4
Oil seal 35x55x11
AP8910477
Not Available
5
Rear brake cam
AP8910222
Not Available
6
Rear brake lever
AP8910223
Not Available
7
Screw w/ flange M6x32
AP8910432
Not Available
8
Brake shoes+springs
AP8910221
$23,67 Unit Price incl. VAT
9
Rear brake cable
AP8910524
Not Available
9
Rear brake cable
AP8910225
Not Available
10
Nut M8x1,25
AP8910375
Not Available
11
Shoe holder plate
AP8910226
Not Available
12
Rear drum cpl.
AP8910227
Not Available
13
Dust cover
AP8910228
Not Available
14
Guard
AP8910199
Not Available
15
Maintenance
AP8910203
Not Available
16
Rear fairing
AP8910202
Not Available
17
Screw w/ flange M6x12
AP8910301
Not Available
18
Screw w/ flange M8x12
AP8910433
Not Available
19
Nut M12
AP8910377
Not Available
20
Screw w/ flange M12x28
AP8910440
Not Available
21
Screw w/ flange M12x50
AP8910229
Not Available
22
Spring
AP8910224
Not Available
23
Pin
AP8910235
Not Available
24
Nut
AP8910312
Not Available
25
Nut M3
AP8910527
Not Available
26
Rear brake cable A
AP8910525
Not Available
27
Rear brake cable B
AP8910520
Not Available
28
Splitter
AP8910566
Not Available
29
Support plate
AP8910574
Not Available
30
Screw w/ flange M6x16
AP8910427
Not Available
31
Brake lever
AP8910545
Not Available
32
Plain washer 13x21x2
AP8910558
Not Available
33
Spring
AP8910549
Not Available
34
Split pin
AP8910404
Not Available
35
Stop switch
AP8910539
Not Available
36
Self-tap screw
AP8910583
Not Available
37
screw
AP8910535
Not Available
38
Nut
AP8910536
Not Available
39
Screw w/ flange
AP8910434
Not Available
40
Nut M6
AP8910369
Not Available
41
Spring
AP8910049
Not Available
42
Register
AP8910424
Not Available
43
Cable-guide
AP8910423
Not Available
43
Pawl
AP8910552
Not Available

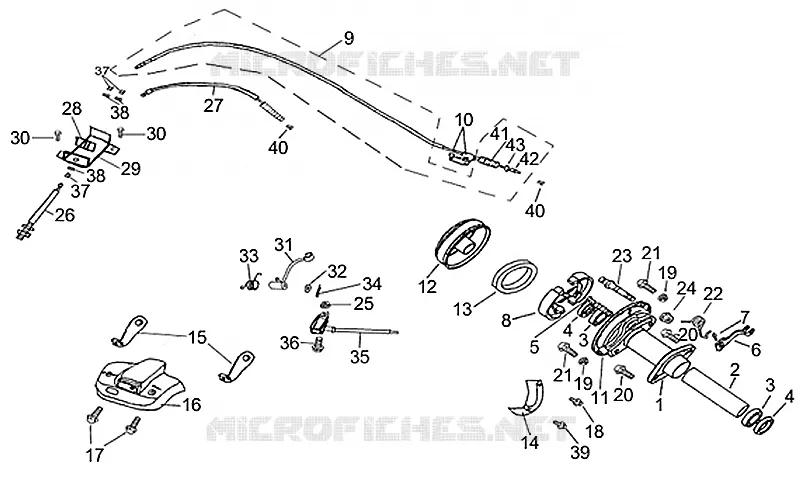

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
