Parts Catalog
Connect. Elem.ts-Footrest
6
Parts Diagram
Parts Catalog
Frame
by
Body
Connect. Elem.ts-Footrest
1
2
2
2
2
3
3
4
4
5
6
6
7
7
8
8
8
8
9
9
10
10
11
11
12
13
14
14
15
15
16
17
18
18
19
19
19
19
20
21
1
Connect.Elem.ts-Rh shock abs.
AP8910515
Not Available
2
Bushing 10x28x27
AP8910464
Not Available
3
Gasket ring 15,5
AP8910268
Not Available
4
Gasket ring 17
AP8910269
Not Available
5
Connect.Elem.ts-Left shock abs
AP8910271
Not Available
6
Cap A
AP8910254
Not Available
7
Dust cover ring
AP8910267
Not Available
8
Hex screw M10x48
AP8910439
Not Available
9
Flanged nut
AP8910376
Not Available
10
lubricator
AP8910256
Not Available
11
Cap B
AP8910257
Not Available
12
RH footrest
AP8910291
Not Available
13
LH footrest
AP8910292
Not Available
14
Screw w/ flange M6x16
AP8910351
Not Available
15
Nut M6
AP8910311
Not Available
16
Plain washer 6x13x1
AP8910382
Not Available
17
Front mudguard support
AP8910249
Not Available
18
Screw w/ flange M8x12
AP8910433
Not Available
19
Screw w/ flange M6x12
AP8910426
Not Available
20
Rubber spacer
AP8911166
Not Available
21
Front mudguard
AP8911162
Not Available

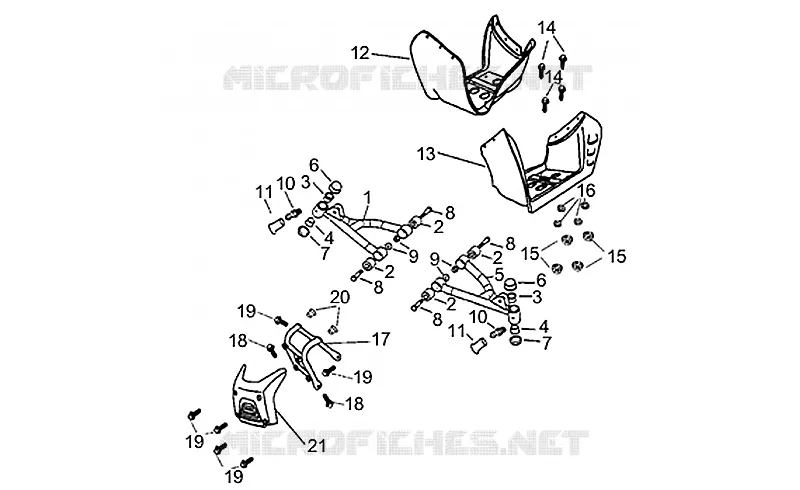

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
