1
Engine displacement
50
2
Model
RALLY
3
Year
2002
4
Trim
Rally Air
5
Parts Catalog
Engine
6
Parts Diagram
Parts Catalog
Dashboard
by
Front wheel

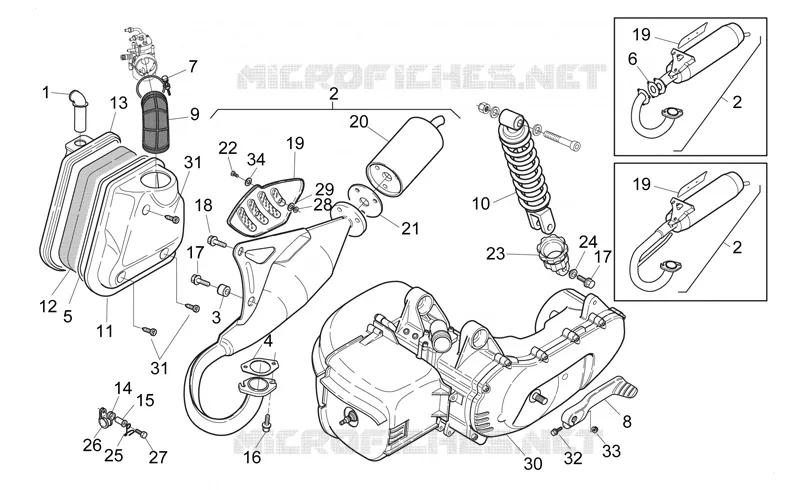

Engine
1
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
19
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
1
Intake hose
AP8220467
$5,38 Unit Price incl. VAT
2
Cat.exhaust pipe
AP8219594
Not Available
2
Cat.exhaust pipe
AP8219587
Not Available
2
Cat.exhaust pipe -A-
AP8219271
Not Available
2
Cat.exhaust pipe
AP8219607
Not Available
2
Cat.exhaust pipe
AP8219405
Not Available
2
Cat.exhaust pipe -D-
AP8219388
Not Available
2
Silencer -J-
AP8219282
Not Available
2
Cat.exhaust pipe -I-
AP8219479
Not Available
2
Silencer
AP8219214
Not Available
2
Cat.exhaust pipe -NL-
AP8219387
Not Available
2
Cat.exhaust pipe
AP8219586
Not Available
2
Silencer -F-
AP8219243
Not Available
2
Silencer -B-
AP8219267
Not Available
2
Cat.exhaust pipe -CH-
AP8219277
Not Available
3
Silent block, exhaust pipe
AP8220357
$6,30 Unit Price incl. VAT
4
Exhaust pipe gasket
AP8219212
$4,82 Unit Price incl. VAT
4
Exhaust pipe gasket
AP8219596
$4,82 Unit Price incl. VAT
5
Air filter housing seal
AP8220385
Not Available
6
Exhaust pipe flange gasket
AP8219321
$4,82 Unit Price incl. VAT
7
Hose collar
AP8201799
$3,65 Unit Price incl. VAT
8
Kick-start lever
AP8232820
$56,70 Unit Price incl. VAT
8
Kick-start lever
AP8235073
Not Available
9
Intake hose
AP8220364
Not Available
10
White spring absorber
AP8203627
Not Available
10
Shock absorber-grey ring
AP8223057
Not Available
10
Shock absorber-blue ring
AP8203718
Not Available
10
Shock absorber-grey ring
AP8203750
Not Available
11
Filter housing cover
AP8258806
$11,69 Unit Price incl. VAT
11
Filter housing cover
AP8231549
$5,38 Unit Price incl. VAT
12
Air filter
AP8201683
$6,35 Unit Price incl. VAT
13
Filter housing body
AP8231548
$5,38 Unit Price incl. VAT
14
Filter housing rubber
AP8220370
$4,62 Unit Price incl. VAT
15
T bush *
AP8121725
$3,65 Unit Price incl. VAT
16
Screw w/ flange
AP8152260
Not Available
17
Screw w/ flange
AP8152289
$3,65 Unit Price incl. VAT
18
Screw w/ flange M8x30
AP8152288
$1,70 Unit Price incl. VAT
19
Exhaust pipe prot., al.
AP8238103
Not Available
19
Exhaust pipe prot., al.
AP8239257
Not Available
19
Silencer prot., s.grey
AP8239206
Not Available
19
Exhaust pipe prot., black
AP8248116
$27,67 Unit Price incl. VAT
19
Exhaust pipe prot., bronze
AP8238501
Not Available
19
Silencer prot., s.grey
AP8239618
Not Available
19
Exhaust pipe prot., chr.black
AP8232524
Not Available
19
Exhaust pipe protection
AP8219487
$38,27 Unit Price incl. VAT
20
Silencer
AP8219236
$81,00 Unit Price incl. VAT
21
Exhaust pipe gasket
AP8201574
$7,23 Unit Price incl. VAT
22
Screw w/ flange M6x16
AP8152246
$0,27 Unit Price incl. VAT
23
Shock absorber cover, black
AP8201812
Not Available
24
T bush 8,2x12x4
AP8121096
$1,70 Unit Price incl. VAT
25
Cable-guide
AP8221172
$5,38 Unit Price incl. VAT
26
Brake hose hanger
AP8134167
$1,49 Unit Price incl. VAT
27
Screw w/ flange M6x30
AP8152281
$1,70 Unit Price incl. VAT
28
T bush *
AP8121075
$3,65 Unit Price incl. VAT
29
Insulating washer
AP8120870
$3,65 Unit Price incl. VAT
29
Insulating washer
AP8221297
$3,65 Unit Price incl. VAT
30
Engine, complete
AP8222499
Not Available
30
Engine
AP8222802
Not Available
30
Engine, complete -NL-
AP8222452
Not Available
30
Engine, complete
AP8222626
Not Available
30
Engine, complete
AP8276019
Not Available
30
Engine
AP8222786
Not Available
30
Engine cpl.-BR-
AP8222580
Not Available
30
Engine, complete -A-
AP8222483
Not Available
30
Engine, complete -D-
AP8222463
Not Available
30
Engine, complete -CH-
AP8222492
Not Available
30
Engine, complete
AP8222410
Not Available
30
Engine, complete
AP8222364
Not Available
30
Engine
AP8222787
Not Available
30
Engine MD
AP8222500
Not Available
31
Screw 5,5x22*
AP8150425
$3,65 Unit Price incl. VAT
32
Screw w/ flange M6x35
AP8152282
$0,51 Unit Price incl. VAT
32
Hex socket screw M6x25
AP8150165
$3,65 Unit Price incl. VAT
33
Low self-locking nut
AP8150430
$0,16 Unit Price incl. VAT
34
Washer 6,6x18*
AP8150179
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
