Parts Catalog
Dashboard
6
Parts Diagram
Parts Catalog
Carburettor I
by
Engine
Dashboard
1
2
3
4
5
6
6
7
8
8
9
10
11
12
13
14
15
16
17
18
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
Dashboard complete
AP8212746
Not Available
1
Dashboard complete
AP8212747
Not Available
1
Dashboard complete
AP8224502
Not Available
1
Dashboard complete
AP8212838
Not Available
1
Dashboard complete
AP8224144
Not Available
1
Dashboard complete
AP8224531
Not Available
1
Dashboard complete
AP8224143
Not Available
1
Dashboard complete
AP8212693
Not Available
1
Dashboard complete
AP8212840
Not Available
2
Dashboard window
AP8212594
Not Available
3
Porte-ampoule complet
AP8212408
$5,38 Unit Price incl. VAT
4
Porte-ampoule complet
AP8212407
$20,60 Unit Price incl. VAT
5
Pawl
AP8218118
Not Available
6
Rotule rétroviseur
AP8201980
$11,77 Unit Price incl. VAT
7
Câble compteur km;
AP8214158
$17,69 Unit Price incl. VAT
8
Handgrip pair, blue
AP8218467
$17,01 Unit Price incl. VAT
8
Handgrip pair, black
AP8218275
Not Available
8
Handgrip pair, grey
AP8218265
Not Available
8
Handgrip pair, tobacco
AP8218468
Not Available
8
Couple manettes, noir;
AP8218199
$28,35 Unit Price incl. VAT
9
Levier frein arrière nu;
AP8218274
$29,70 Unit Price incl. VAT
9
Rear brake lever
AP8218153
Not Available
10
Brake lever pin
AP8218114
Not Available
11
LH rear brake control
AP8218136
Not Available
11
Rear brake lever complete
AP8218236
$21,87 Unit Price incl. VAT
12
Brake lever U-bolt
AP8218154
$5,38 Unit Price incl. VAT
13
Pump cover
AP8113305
Not Available
14
Commande starter
AP8212529
$9,18 Unit Price incl. VAT
15
Master cyl.level window
AP8113414
Not Available
16
Choke cable
AP8214159
Not Available
17
Throttle cable
AP8214160
Not Available
18
Bush
AP8221225
Not Available
19
Throttle+hand grip, grey
AP8218451
Not Available
19
Throttle+hand grip, blue
AP8218449
Not Available
19
Throttle+hand grip, grey
AP8218252
Not Available
19
Throttle+hand grip, black
AP8218238
Not Available
19
Throttle+hand grip, black
AP8218184
Not Available
20
RH/LH mirror rubber
AP8220398
Not Available
21
Miroir rétroviseur dte
AP8201767
$49,95 Unit Price incl. VAT
22
Miroir rétroviseur gche
AP8201768
$49,95 Unit Price incl. VAT
23
Handlebar
AP8218170
Not Available
24
Dashboard lens seal
AP8220422
Not Available
25
Levier frein AV+régl.;
AP8218156
$40,50 Unit Price incl. VAT
25
Front brake lever
AP8218273
Not Available
26
Poussoir clignotants
AP8212767
$17,07 Unit Price incl. VAT
27
2-way lightbutton
AP8212768
Not Available
27
3-way lightbutton
AP8212764
Not Available
27
2-way lightbutton
AP8212837
Not Available
28
Bouton démarrage
AP8124208
$11,69 Unit Price incl. VAT
29
Bouton avertisseur
AP8124209
$10,76 Unit Price incl. VAT
30
Front master cilinder D12
AP8213207
Not Available
30
Front master cilinder D12
AP8213252
Not Available
31
Cavalier levier frein;
AP8218155
$14,30 Unit Price incl. VAT
32
Pump revision kit
AP8113636
$21,52 Unit Price incl. VAT
33
Interr.stop mot.;
AP8224130
$17,07 Unit Price incl. VAT
34
Connecteur
AP8127487
$10,76 Unit Price incl. VAT
35
Bouchon
AP8104546
$5,38 Unit Price incl. VAT
36
Déviateur feux;
AP8124081
$12,45 Unit Price incl. VAT
37
Lights selector support
AP8234219
Not Available

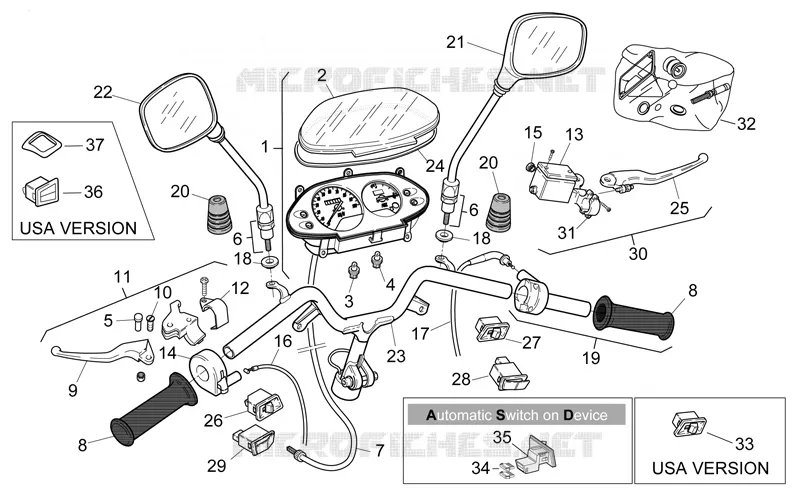

Find the detailed Dashboard APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
