Engine displacement
50
2
Model
RALLY
3
Year
1996
4
Trim
Rally H2O
5
Parts Catalog
Cylinder head II
6
Parts Diagram
Parts Catalog
Cylinder head I
by
Connecting rod group
Cylinder head II
1
2
3
3
4
5
6
7
7
7
8
9
10
10
11
11
11
1
Hose clamp 35620
AP8206773
Not Available
2
pipe 30 MM
AP8206774
Not Available
3
Hose clamp 35621
AP8206775
Not Available
4
Pipe connector
AP8206776
Not Available
5
pipe 220 MM
AP8206777
Not Available
6
Cover
AP8206778
Not Available
7
Collier
AP8202069
$6,30 Unit Price incl. VAT
8
pipe 45 mm
AP8206779
Not Available
9
pipe 80 MM
AP8206780
Not Available
10
Head-Carburettor union hose
AP8206883
$10,35 Unit Price incl. VAT
11
Hose clip D8
AP8206884
$6,60 Unit Price incl. VAT

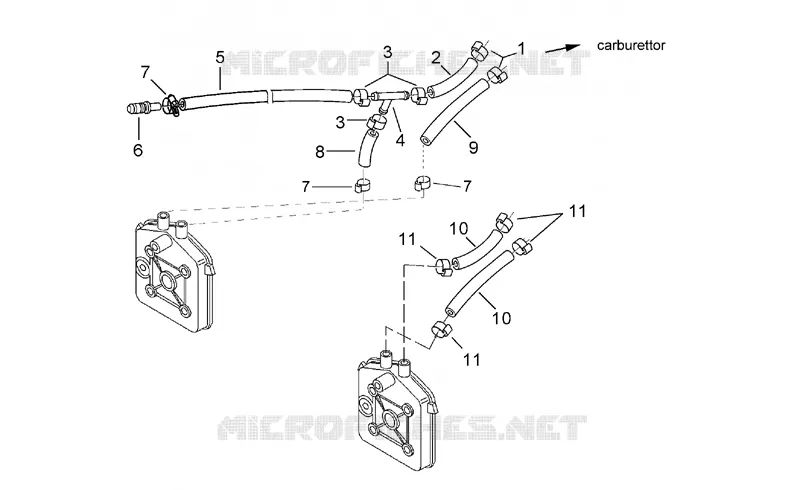

Find the detailed Cylinder head II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
