1
Engine displacement
125
2
Model
RS
3
Year
1997
4
Trim
RS 125 (engine 122cc)
5
Parts Catalog
Repairing tools II
6
Parts Diagram
Parts Catalog
Repairing tools I
by
Repairing tools II
1
2
3
4
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
1
Engine support cpl.
AP0277917
Not Available
2
Adapter cpl
AP0277100
Not Available
3
Hex screw M8x20
AP0940590
Not Available
4
Washer 8,4
AP0250311
Not Available
5
Threaded pin
AP0277110
Not Available
6
Nut M8
AP0242206
Not Available
7
Spacer 10,5/24/15
AP0847160
Not Available
8
Bush
AP0276662
Not Available
9
Half ring
AP0276025
Not Available
10
Ring
AP0977490
Not Available
11
Puller cpl.
AP0876298
Not Available
12
Hex screw M16x145
AP0940755
Not Available
13
Hex socket screw M8x40
AP0840681
Not Available
14
Loctite Anti Seize 10 GR.
AP0297431
Not Available
15
Molykote 111 100gr.
AP0897161
Not Available
16
Loctite (violet) 221 10cc.
AP0899785
Not Available
17
Loctite (green) 648 5gr.
AP0899788
Not Available
18
Silastic 732 Rtv 100 gr.
AP0297386
Not Available
19
Lithium-Base grease 250gr.
AP0897330
Not Available
20
Cylinder set gasket
AP0293318
$136,79 Unit Price incl. VAT
21
Engine set gasket
AP0293314
Not Available
22
Tool kit
AP0277107
Not Available

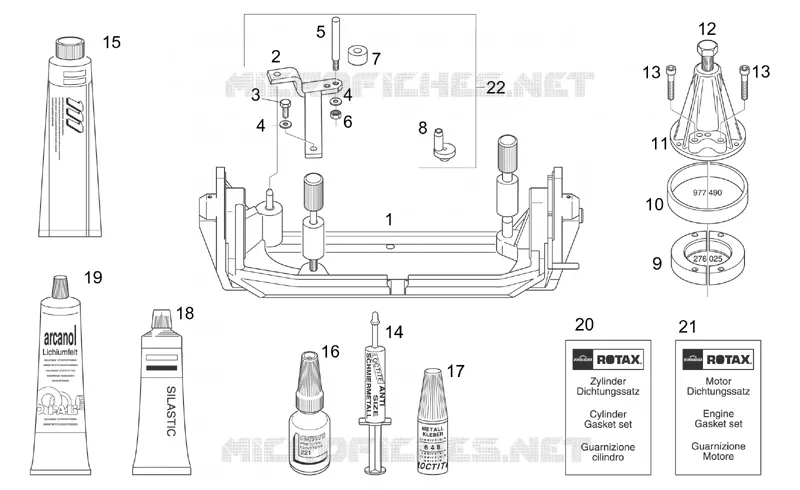

Find the detailed Repairing tools II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
