Parts Catalog
Cylinder - Cylinder head
6
Parts Diagram
Parts Catalog
Crankshaft - Balance shaft
by
Transmission 6 speed
Cylinder - Cylinder head
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
34
34
36
36
37
37
38
39
40
41
43
44
45
46
47
47
1
Cylinder base gasket 0,5
AP0650091
Not Available
1
Cylinder base gasket 0,3
AP0650090
Not Available
1
Gasket 0,8
AP0650097
$19,71 Unit Price incl. VAT
1
Cylinder base gasket 0,8
AP0650092
Not Available
2
Cylinder, grey
AP0223617
Not Available
2
Cylinder
AP0223368
Not Available
3
Exhaust valve
AP0253722
$256,43 Unit Price incl. VAT
4
Valve body
AP0253465
$142,32 Unit Price incl. VAT
4
Valve body
AP0253462
Not Available
5
O-ring 13,3x2,4
AP0230880
$5,20 Unit Price incl. VAT
6
Rubber spacer 14/19/1,5
AP0260120
Not Available
7
O-ring 14x3
AP0831500
Not Available
8
Valve stem seal
AP0230810
Not Available
10
Spring
AP0239052
Not Available
11
Elect.rave valve cable
AP0297740
Not Available
11
Elect.rave valve cable
AP8114175
Not Available
12
Rubber cap
AP0860460
$13,47 Unit Price incl. VAT
13
Spring washer B6
AP0845020
$3,65 Unit Price incl. VAT
14
Hex socket screw M6x20
AP0241930
$3,65 Unit Price incl. VAT
15
Washer 8,4
AP0250311
Not Available
16
Nut M8
AP0942671
Not Available
17
Stud bolt M7x19/22
AP0241241
Not Available
18
O-ring 64x2
AP0250160
$3,65 Unit Price incl. VAT
19
Cylinder head
AP0223384
Not Available
20
Washer 7,4
AP0227571
Not Available
21
Nut
AP0242591
$3,65 Unit Price incl. VAT
22
O-ring 23,3x2,4
AP0430782
$5,90 Unit Price incl. VAT
23
Cylinder head cover
AP0223398
Not Available
23
Cylinder head cover
AP0613100
Not Available
24
Thermostat 70°
AP0222122
Not Available
25
Thermostat holder
AP0222175
$10,35 Unit Price incl. VAT
25
Maintenance
AP0222174
Not Available
26
Spring
AP0239950
Not Available
27
Bracket
AP0222200
Not Available
27
Thermostat bow
AP0222202
Not Available
28
Special cap screw M4x8
AP0240195
$3,65 Unit Price incl. VAT
29
O-ring 105x2,5
AP0250280
$3,65 Unit Price incl. VAT
30
Hex socket screw M6x20
AP0241930
$3,65 Unit Price incl. VAT
31
Gasket
AP0250521
Not Available
32
Reed valve assy
AP0224387
Not Available
34
Reed valve assy
AP0224430
Not Available
36
Break washer A4
AP0945758
$3,65 Unit Price incl. VAT
37
Round screw M4x8
AP0940235
Not Available
38
Carburettor flange
AP0267915
Not Available
38
Carburettor flange 28 MM
AP0267917
Not Available
39
Carburettor flange 34 MM
AP0267996
Not Available
40
Hex socket screw M6x25
AP0840861
$3,65 Unit Price incl. VAT
41
Hose clamp 51
AP0251850
Not Available
43
Exhaust flange cpl.
AP0273970
Not Available
43
Exhaust flange cpl.
AP0273882
Not Available
44
Butt strap
AP0224067
Not Available
45
Hex socket screw M8x25
AP0240081
Not Available
46
Loctite Anti Seize 10 GR.
AP0297431
Not Available
47
Loctite (green) 648 5gr.
AP0899788
Not Available

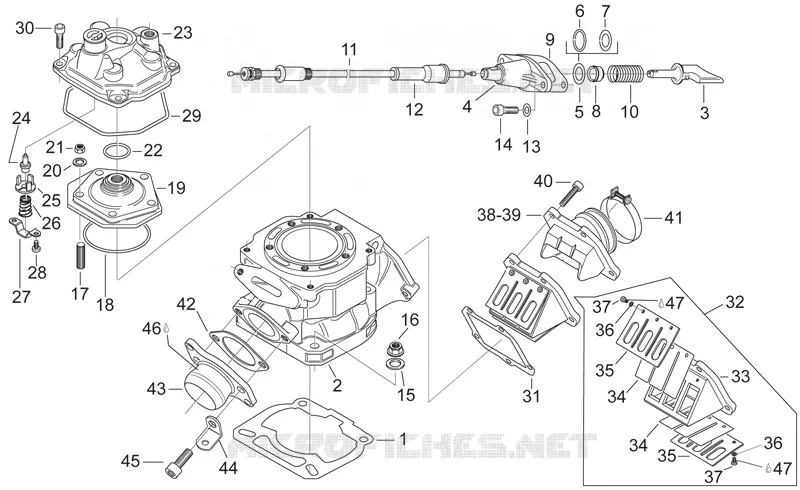

Find the detailed Cylinder - Cylinder head APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
