Parts Catalog
Dashboard
6
Parts Diagram
Parts Catalog
Rear body II
by
RH controls
Dashboard
1
1
2
3
4
5
6
7
8
9
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Dashboard complete
AP8124835
Not Available
1
Dashboard complete
AP8124491
Not Available
1
Dashboard complete
AP8127325
Not Available
2
Rubber spacer
AP8220150
$1,42 Unit Price incl. VAT
3
Low self-locking nut
AP8150430
$0,16 Unit Price incl. VAT
4
Washer 6,6x18*
AP8150179
$0,08 Unit Price incl. VAT
5
Odometer cable
AP8114444
Not Available
5
Odometer cable
AP8114334
Not Available
6
Tachometer cable-multif.
AP8124652
Not Available
7
Sponge gasket
AP8124198
Not Available
8
Tachometer
AP8124225
Not Available
9
Sponge fixing bush
AP8124253
Not Available
10
Plug screw
AP8123553
$3,65 Unit Price incl. VAT
11
Window
AP8124194
Not Available
12
Multifun. device
AP8124226
Not Available
13
Multif.device plug
AP8124195
Not Available
14
Rubber tachometer
AP8124655
Not Available
15
Tachometer support
AP8124197
Not Available
16
Dashboard cable
AP8124654
Not Available
17
Pilot lamps holder screw
AP8124656
Not Available
18
Pilot lamps holder
AP8124657
Not Available
19
Nut
AP8124658
Not Available
20
Washer
AP8124659
Not Available
21
Rubber speedometer
AP8124254
Not Available
22
Reset button screw
AP8124660
Not Available
23
Reset button
AP8131176
$6,15 Unit Price incl. VAT
24
Speedometer
AP8124486
Not Available
24
Speedometer
AP8127361
Not Available
24
Speedometer
AP8124224
Not Available
25
Speedometer gasket
AP8124252
Not Available
26
Odometer support
AP8124653
Not Available
27
Reset button rubber
AP8124661
Not Available
28
Instrum.holder frame
AP8146079
Not Available

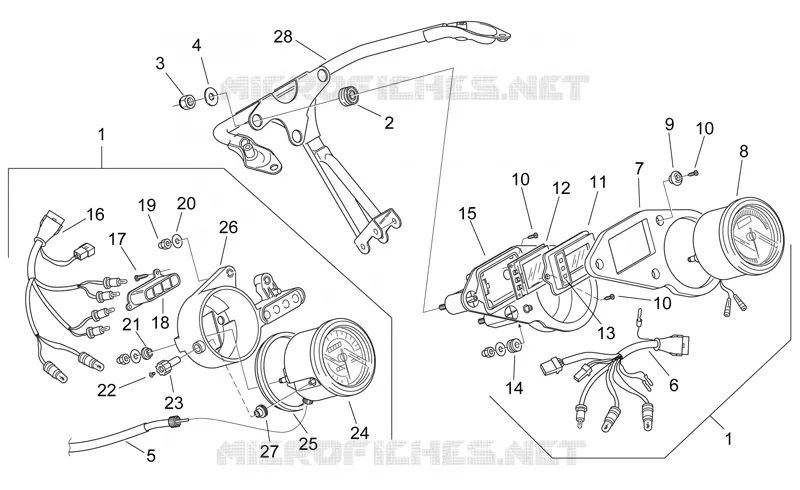

Find the detailed Dashboard APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
