1
Engine displacement
125
2
Model
RS
3
Year
2004
4
Trim
RS 125
5
Parts Catalog
Frame
6

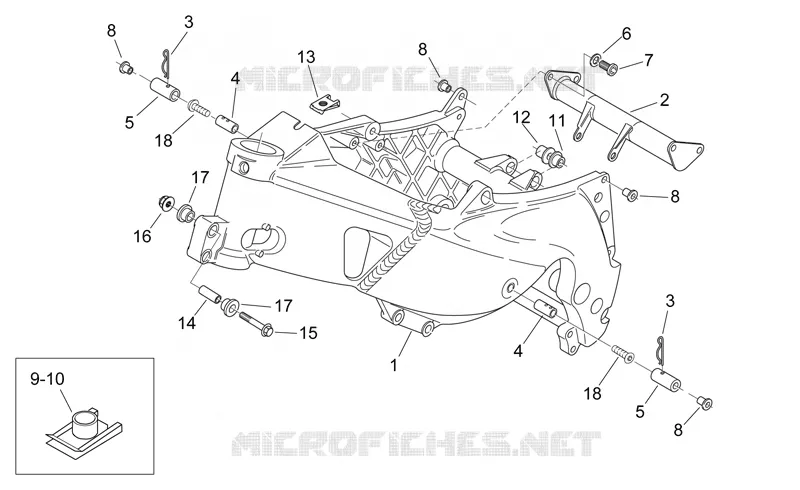

Parts Diagram
Parts Catalog
by
Central stand
Frame
1
2
3
3
4
4
5
5
6
7
8
8
8
8
9
10
11
12
13
14
15
16
17
17
18
18
1
Frame
AP8135998
Not Available
1
Frame
AP8146830
Not Available
2
Frame front fix. plate
AP8135718
Not Available
3
Split pin
AP8201287
$6,30 Unit Price incl. VAT
4
Special bush *
AP8121867
Not Available
5
Lat.frng fix.pipe
AP8120699
$5,38 Unit Price incl. VAT
6
Washer 8,4x16x1,6
AP8150017
$3,65 Unit Price incl. VAT
7
Hex socket screw M8x20
AP8150169
$3,70 Unit Price incl. VAT
8
Rubber w/ insert
AP8120531
$6,30 Unit Price incl. VAT
9
Clip M6
AP8102376
Not Available
10
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
11
T bush
AP8121151
$2,25 Unit Price incl. VAT
12
T bush *
AP8121155
$1,77 Unit Price incl. VAT
13
Clip M6
AP8102798
Not Available
14
Spacer *
AP8121764
$8,01 Unit Price incl. VAT
15
Screw w/ flange
AP8152284
$3,65 Unit Price incl. VAT
16
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
17
Rubber spacer *
AP8120670
$5,38 Unit Price incl. VAT
18
Hex socket screw
AP8152269
$3,70 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
