Lock hardware kit for APRILIA RS 125 from 2006

Lock hardware kit

1

Lock kit

AP8104916

Not Available

2

"Aprilia" key w/out transpo.

AP8140710

$18,75 Unit Price incl. VAT

3

Main switch - steering lock

AP8104708

Not Available

4

Fuel filler cap

AP8104710

$140,34 Unit Price incl. VAT

5

Saddle lock

AP8104995

$82,69 Unit Price incl. VAT

6

Wire

AP8134949

$7,02 Unit Price incl. VAT

7

Pass.saddle connecting plate

AP8102913

$8,91 Unit Price incl. VAT

8

Hex socket screw M5x16

AP8150050

$3,65 Unit Price incl. VAT

9

Hex socket screw M5x60

AP8150523

$3,65 Unit Price incl. VAT

10

Special screw M8x15

AP8150349

$4,36 Unit Price incl. VAT

11

Screw w/ flange M6x16

AP8152278

$1,77 Unit Price incl. VAT

12

Hex socket screw M6x30

AP8150220

$0,17 Unit Price incl. VAT

13

Hex socket screw M8x16

AP8150211

$3,65 Unit Price incl. VAT

14

Toolkit

AP8102950

Not Available

15

screw

AP8150525

$3,65 Unit Price incl. VAT

16

Bush

AP8221129

$3,65 Unit Price incl. VAT

17

Self-locking nut M6

AP8152299

$0,34 Unit Price incl. VAT

18

Low self-locking nut

AP8150430

$0,16 Unit Price incl. VAT

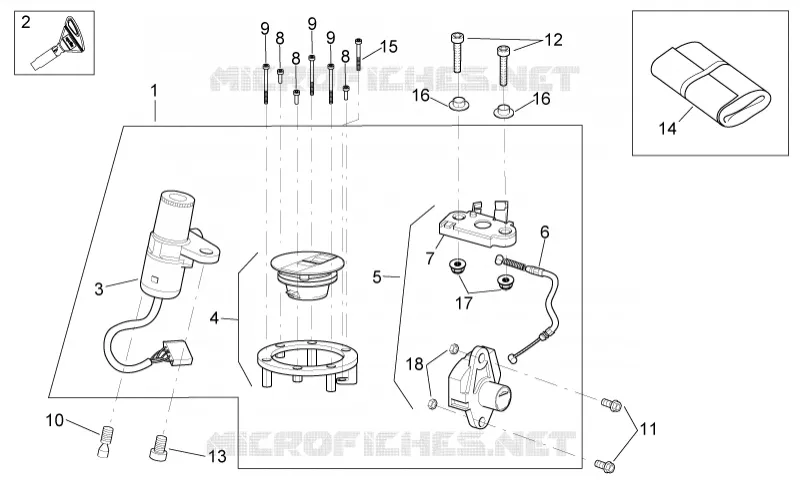

Find the detailed Lock hardware kit APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
