Crankshaft - Balance shaft for APRILIA RS 125 from 2010

Crankshaft - Balance shaft

1

Crankshaft cpl. 54,5 mm

AP0295375

$851,92 Unit Price incl. VAT

2

Bearing 6206

AP0832533

$133,27 Unit Price incl. VAT

3

Spacer D50x62x0,3

AP0427591

Not Available

3

Spacer D50x62x0,1

AP0427590

Not Available

4

Break washer A12

AP0945754

Not Available

5

Nut M12x1

AP0242515

$8,01 Unit Price incl. VAT

6

O-ring 18x3,5

AP0430460

$3,65 Unit Price incl. VAT

7

Balance shaft gear Z=27

AP0234431

$75,98 Unit Price incl. VAT

8

Transmission key 4x5

AP0246570

Not Available

9

Circlip AV 20

AP0245650

Not Available

10

Bearing 6302

AP0232291

Not Available

11

Balance shaft

AP0237948

Not Available

12

Ball bearing 6005

AP0232341

Not Available

13

Thrust washer

AP0227280

$7,23 Unit Price incl. VAT

14

screw

AP0940315

Not Available

15

Loctite (violet) 221 10cc.

AP0899785

Not Available

16

Roller cage 15x19x20

AP0932028

$48,60 Unit Price incl. VAT

17

Connecting rod cpl.

AP0295379

Not Available

18

Loctite Anti Seize 50ml.15378

AP0297434

Not Available

19

Loctite (green) 648 5gr.

AP0899788

Not Available

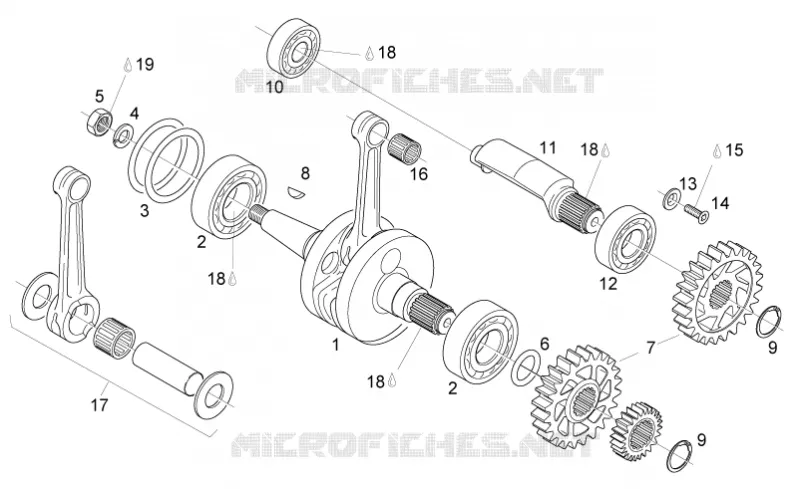

Find the detailed Crankshaft - Balance shaft APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
