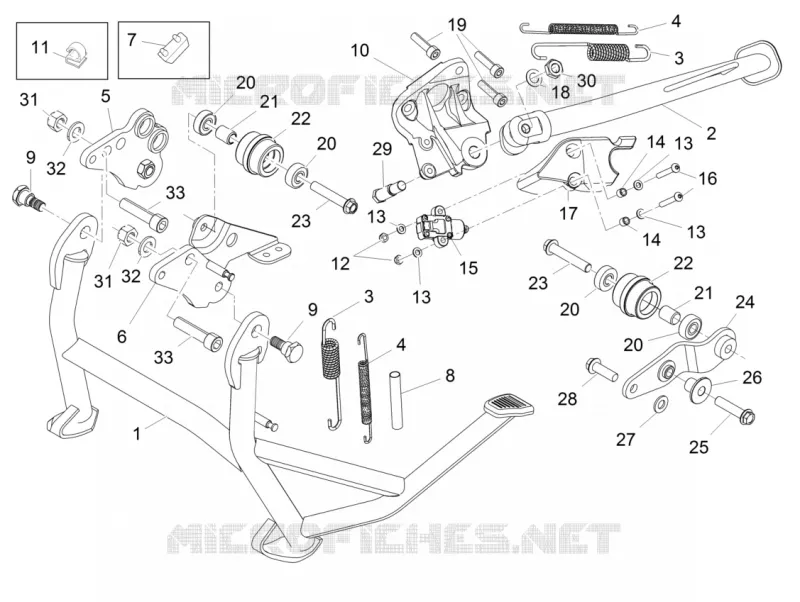

Central stand FOR Caponord Carabinieri FROM 2015

Central stand

1

Central stand

2B001598

$260,22 Unit Price incl. VAT

1

Central stand

B044623

Not Available

2

Lateral stand

2B000374

$205,19 Unit Price incl. VAT

3

Lateral stand spring

AP8221204

$5,45 Unit Price incl. VAT

4

Internal lateral stand spring

AP8221211

$4,86 Unit Price incl. VAT

5

RH support

B044622

Not Available

6

LH support

B044621

$72,09 Unit Price incl. VAT

7

Pad

563984

$5,62 Unit Price incl. VAT

8

Stand spring protection

AP8102524

$1,42 Unit Price incl. VAT

9

Central stand fixing screw

2B000652

$10,95 Unit Price incl. VAT

10

Stand plate

B044415

$120,04 Unit Price incl. VAT

11

Black cable guide

AP8201727

$0,34 Unit Price incl. VAT

12

Low self-locking nut

AP8150311

$0,08 Unit Price incl. VAT

13

Washer 5,3X10X1

AP8150177

$0,15 Unit Price incl. VAT

14

Bushing 5,3x8x7,1

AP8221036

$0,27 Unit Price incl. VAT

15

Lateral stand switch

AP8127856

Not Available

16

Hex socket screw

AP8225369

$3,65 Unit Price incl. VAT

17

Central stand cover

851790

$1,81 Unit Price incl. VAT

18

Curved spring washer *

AP8150292

$0,34 Unit Price incl. VAT

19

Pre-coated M8x30 SHC screw

B043044

$3,70 Unit Price incl. VAT

20

Ball bearing 8x22x7

AP9100175

$6,35 Unit Price incl. VAT

21

Spacer

AP8161076

$3,65 Unit Price incl. VAT

22

Black chain guide roller

AP8161074

$3,65 Unit Price incl. VAT

23

Screw w/ flange

AP8152291

$0,85 Unit Price incl. VAT

24

Support bracket

B046010

$40,88 Unit Price incl. VAT

25

Hex socket screw M12x50

GU98682650

$3,65 Unit Price incl. VAT

26

Bush

AP8121332

$1,93 Unit Price incl. VAT

27

Washer 8,4x16x1,6

AP8150017

$3,65 Unit Price incl. VAT

28

Screw w/ flange M8x25

AP8152287

$0,34 Unit Price incl. VAT

29

Pin

852093

$4,46 Unit Price incl. VAT

30

Low nut M10x1,25

AP8152001

$0,51 Unit Price incl. VAT

31

Low self-locking nut M12*

AP8150432

$3,65 Unit Price incl. VAT

32

Washer 13x24x2,5*

AP8150101

$3,65 Unit Price incl. VAT

33

Hex socket screw M12x50

GU98682650

$3,65 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
