Exhaust unit I for RS 250 from 1998

Exhaust unit I

1

RH cat.exhaust pipe

AP8119391

Not Available

1

RH exhaust pipe

AP8119332

Not Available

2

LH cat.exhaust pipe

AP8119392

Not Available

2

LH exaust pipe

AP8119333

Not Available

3

Exhaust p. prot. plate

AP8117104

Not Available

4

Exhaust pipe heat prot.

AP8117102

Not Available

5

Washer 6,6x18x1,6*

AP8150015

$0,16 Unit Price incl. VAT

6

Hex socket screw

AP8150388

$3,65 Unit Price incl. VAT

7

Breather pipe cable guide

AP8121963

Not Available

8

Exaust pipe support

AP8134334

Not Available

9

Rubber exhaust

AP8120947

$5,38 Unit Price incl. VAT

10

T bush *

AP8221056

$3,65 Unit Price incl. VAT

11

Rubber exhaust

AP8120948

$6,30 Unit Price incl. VAT

12

Nut M8

AP8150334

Not Available

13

Screw w/ flange M6x16

AP8152278

$1,77 Unit Price incl. VAT

14

Washer 6,4x12,5*

AP8150178

$0,34 Unit Price incl. VAT

15

Self-locking nut M8

AP8152300

$0,34 Unit Price incl. VAT

16

Exhaust pipe flange gasket

AP8119356

$25,95 Unit Price incl. VAT

17

Exhaust pipe flange gasket

AP8119358

Not Available

18

Exhaust flange

AP8106295

Not Available

19

Exhaust pipe flange gasket

AP8119357

Not Available

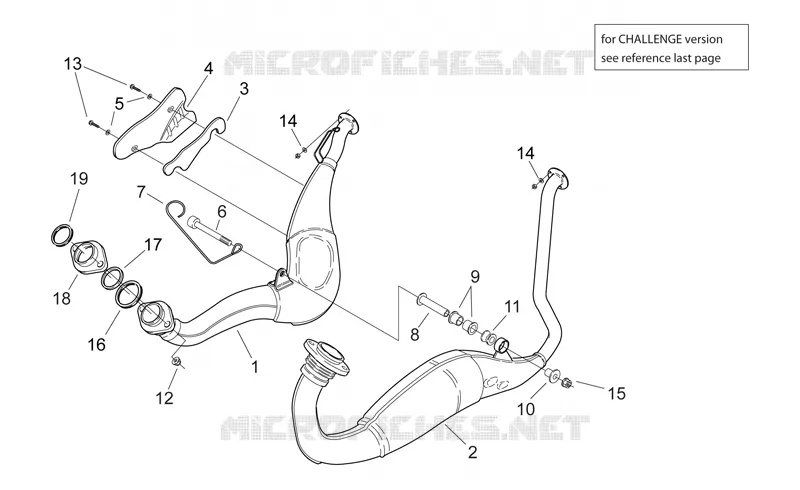

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
