Swing arm for RS 250 from 2000

Swing arm

1

Swing arm

AP8135803

Not Available

2

Rear swing arm pin

AP8125651

$113,74 Unit Price incl. VAT

3

Chain guard

AP8131925

Not Available

4

Rear swin.arm pin sp.

AP8121923

$6,60 Unit Price incl. VAT

5

Chain guide plate

AP8120846

Not Available

6

Needle bearing 25x32x24

AP8110070

Not Available

7

Rear sw.arm piv.bush

AP8121884

$15,31 Unit Price incl. VAT

8

Washer

AP8120872

$3,65 Unit Price incl. VAT

9

Adjustment bush

AP8121899

$11,69 Unit Price incl. VAT

10

Screw w/ flange M5x16

AP8152298

$0,21 Unit Price incl. VAT

11

Ring nut M20x1

AP8121898

$5,38 Unit Price incl. VAT

12

Clearance bush

AP8121925

Not Available

13

Rubber w/ insert

AP8120531

$6,30 Unit Price incl. VAT

14

Curved spring washer

AP8102429

Not Available

15

Cup for shoe

AP8234020

$2,74 Unit Price incl. VAT

16

Hex socket screw M5x16

AP8152268

$3,38 Unit Price incl. VAT

17

Cable-guide

AP8134186

$5,38 Unit Price incl. VAT

18

Washer 21x37x3

AP8152089

Not Available

19

Screw w/ flange M5x16

AP8152298

$0,21 Unit Price incl. VAT

20

Black hose D12*

AP8102151

Not Available

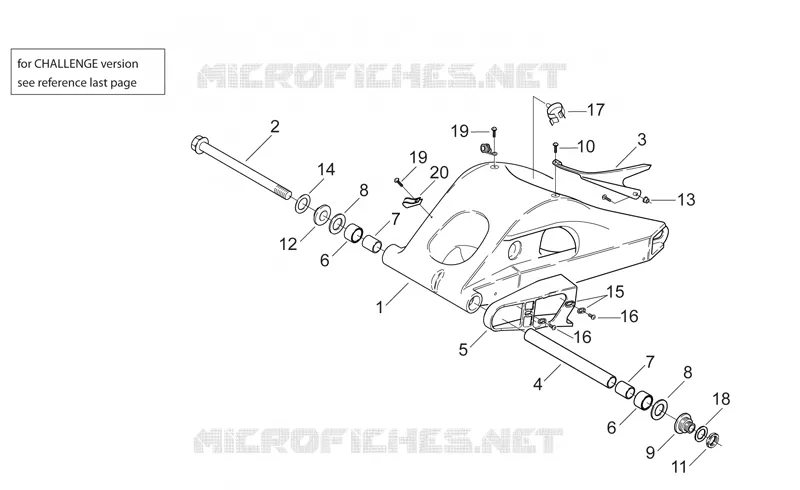

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
