1
Engine displacement
50
2
Model
RS
3
Year
1993
4
Trim
RS 50
5
Parts Catalog
Cylinder - Cylinder head
6
Parts Diagram
Parts Catalog
Driven shaft - 6 GEARS
by

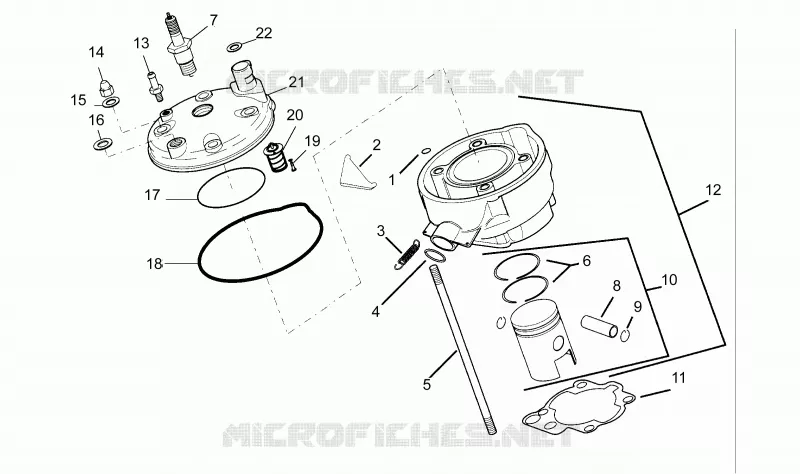

Cylinder - Cylinder head
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
O-ring D7,65x1,78
AP8502655
Not Available
2
Spring fixing plate
AP8508882
Not Available
3
Exhaust pipe fixing spring
AP8507839
Not Available
4
O-ring D28,2x2,6
AP8502668
$4,36 Unit Price incl. VAT
5
Stud bolt M7x115
AP8508553
$11,66 Unit Price incl. VAT
6
Piston ring set D40,3
AP8206302
Not Available
7
Spark plug BR8ES
AP8206873
Not Available
8
Piston pin D12x34,5
AP8502846
$9,18 Unit Price incl. VAT
9
Stop ring D12
AP8206019
Not Available
10
Piston assy D40,3
AP8206250
Not Available
11
Cylinder base gasket
AP8206292
$4,82 Unit Price incl. VAT
12
Cylinder with piston D40,3
AP8206375
Not Available
13
Water hose union
AP8206618
Not Available
14
Cap self-locking nut M7x1
AP8206427
$3,65 Unit Price incl. VAT
15
Spring washer
AP8206721
Not Available
16
Gasket 14,1x22x1
AP8508560
Not Available
17
O-ring D51,5x1,78
AP8206285
$10,95 Unit Price incl. VAT
18
O-ring 104,3x3,5
AP8206286
$6,60 Unit Price incl. VAT
19
Screw with washer M4x10
AP8502559
Not Available
20
Thermostat
AP8206383
$63,50 Unit Price incl. VAT
21
Cylinder head, grey
AP8106692
Not Available
22
Oil plug seal D8x14
AP8502759
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
