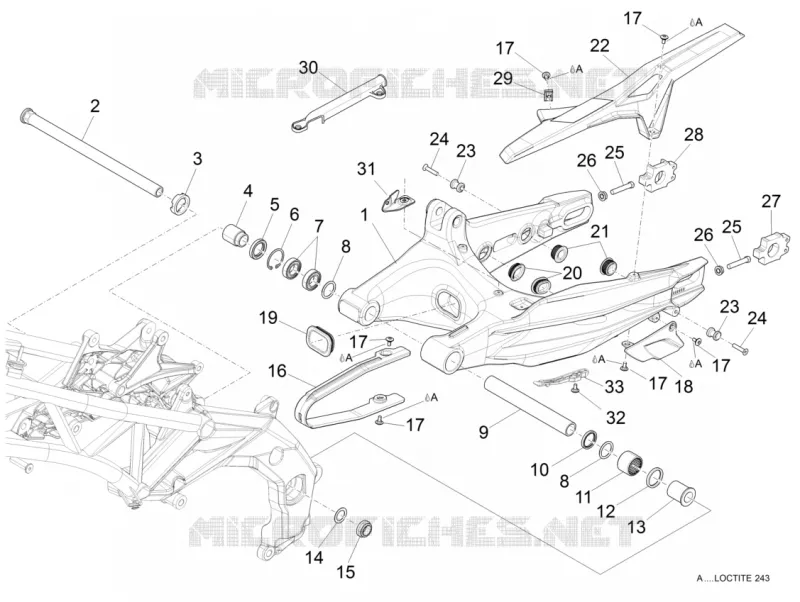

Swing arm FOR Caponord FROM 2015

Swing arm

1

Swing arm

85623200XI2

Not Available

2

Rear swing arm pin

85259R

Not Available

3

Swing arm ring nut

AP8121201

$8,16 Unit Price incl. VAT

4

Adjustment bush

AP8121200

$10,95 Unit Price incl. VAT

5

Gasket ring

AP8144006

$5,20 Unit Price incl. VAT

6

Inside circlip d37

AP8121204

$3,65 Unit Price incl. VAT

7

Ball bearing 61904-2RS1

890002

$23,76 Unit Price incl. VAT

8

O-ring 134

AP8144048

$3,65 Unit Price incl. VAT

9

Internal spacer

AP8121570

$18,12 Unit Price incl. VAT

10

Gasket ring

890126

$1,68 Unit Price incl. VAT

11

Roller cage

AP8110078

$11,34 Unit Price incl. VAT

12

Gasket ring

AP8144005

$8,01 Unit Price incl. VAT

13

Rear int.sw.arm piv.bush

AP8121203

$10,95 Unit Price incl. VAT

14

Wheel pin washer

AP8125687

$0,42 Unit Price incl. VAT

15

Rear wheel spindle nut

AP8125763

$8,12 Unit Price incl. VAT

16

Chain guide plate

AP8144168

$35,51 Unit Price incl. VAT

17

Hex socket screw M5x9

AP8150500

$1,53 Unit Price incl. VAT

18

Chain guide plate

859929

$5,44 Unit Price incl. VAT

19

Cover

860898

$8,26 Unit Price incl. VAT

20

Cover

860899

$3,78 Unit Price incl. VAT

21

Cover

860900

$4,89 Unit Price incl. VAT

22

Chain guard

856787

$14,23 Unit Price incl. VAT

23

Rear stand bush

AP8121890

$3,65 Unit Price incl. VAT

24

screw

255638

$0,15 Unit Price incl. VAT

25

Chain tens.adjuster screw

AP8152305

$3,65 Unit Price incl. VAT

26

Nut M8

AP8150334

Not Available

27

LH chain tensioner

2B000578

$33,75 Unit Price incl. VAT

27

LH chain tensioner

B046077

Not Available

28

RH chain tensioner

2B000577

$33,75 Unit Price incl. VAT

28

RH chain tensioner

B046078

$35,10 Unit Price incl. VAT

29

Clip M5

AP8102375

$0,69 Unit Price incl. VAT

30

Brake hose protection

895349

Not Available

31

Fixing plate

B046021

$22,29 Unit Price incl. VAT

32

Hex socket screw M5x9

AP8150500

$1,53 Unit Price incl. VAT

33

Chain tensioner

2B000307

$31,97 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
