Parts Catalog
Frame
6
Parts Diagram
Parts Catalog
Front wheel
by
Handlebar - Controls

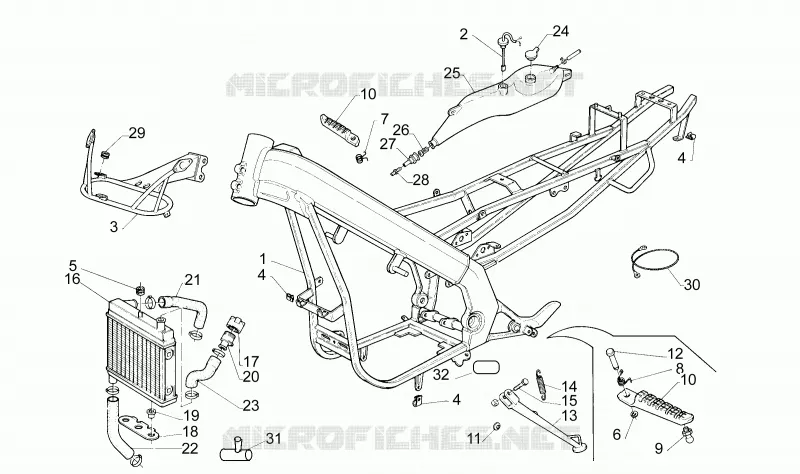

Frame
1
2
3
4
4
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
Frame, grey
AP8232970
Not Available
1
Frame, black
AP8232867
Not Available
1
Frame, black
AP8232889
Not Available
2
Oil reserve indicator
AP8201192
Not Available
3
San.cat.inst.h.frame
AP8232931
Not Available
3
Instrum.holder frame
AP8232767
Not Available
4
Clip
AP8102046
Not Available
5
Rubber spacer
AP8120030
$0,85 Unit Price incl. VAT
6
Stop ring
AP8120573
$3,65 Unit Price incl. VAT
7
RH front footrest spring
AP8221181
Not Available
8
LH front footrest spring
AP8221182
Not Available
9
Footrest pin
AP8121134
$5,73 Unit Price incl. VAT
10
Front footrest, pair
AP8135313
Not Available
11
Belleville spring
AP8121697
$3,65 Unit Price incl. VAT
12
Footrest pin
AP8221057
$5,38 Unit Price incl. VAT
13
Lateral stand, black
AP8232869
Not Available
13
Lateral stand, phor. black
AP8232915
Not Available
13
Side stand, grey
AP8232727
Not Available
14
Coil pull spring *
AP8121695
$5,38 Unit Price incl. VAT
14
Coil pull spring *
AP8121696
$17,83 Unit Price incl. VAT
14
Lateral stand spring
AP8201002
$1,27 Unit Price incl. VAT
15
Screw M10x30
AP8152048
Not Available
15
Central stand fixing screw
AP8152310
Not Available
16
Water cooler
AP8201476
Not Available
17
Rad cap w/ vent
AP8201463
Not Available
18
Water cooler support
AP8232491
Not Available
19
Silent-block *
AP8120275
$0,55 Unit Price incl. VAT
20
Filler cap
AP8201312
$5,38 Unit Price incl. VAT
21
Water cooler-head tube
AP8220265
Not Available
22
Water cooler hose union
AP8220406
Not Available
22
Pump connection hose
AP8220417
Not Available
22
Water cooler-pump tube
AP8220280
Not Available
23
Water rad.feed pipe
AP8220235
Not Available
24
Oil filler cap
AP8220154
$5,38 Unit Price incl. VAT
25
Oil tank
AP8231212
Not Available
26
Mixer oil filter
AP8102224
$4,62 Unit Price incl. VAT
27
Rubber spacer *
AP8102223
$4,62 Unit Price incl. VAT
28
2-way union
AP8101944
$0,76 Unit Price incl. VAT
29
Rubber spacer
AP8220150
$1,42 Unit Price incl. VAT
30
Helmet lock cable
AP8201611
Not Available
31
Tee union
AP8220415
Not Available
32
Lateral stand plate
AP8134266
$15,98 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
