1
Engine displacement
50
2
Model
RS
3
Year
2005
4
Trim
RS 50
5
Parts Catalog
LH Controls
6
Parts Diagram
Parts Catalog
RH controls
by
Water cooler

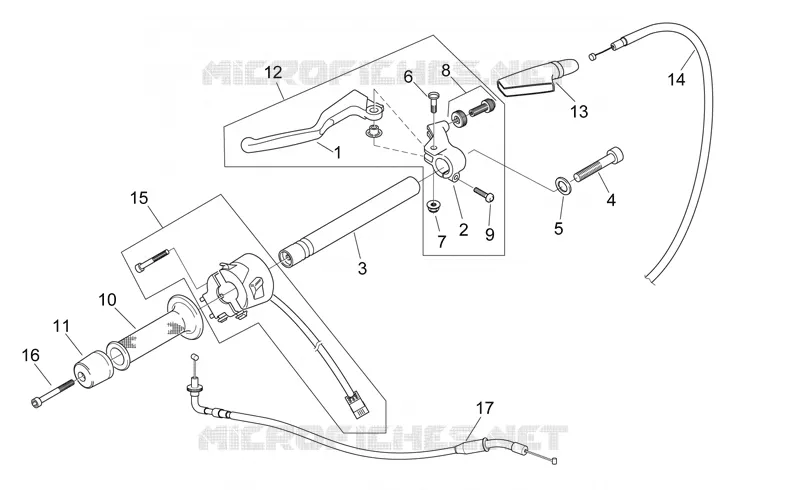

LH Controls
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Clutch lever
AP8218462
Not Available
2
Clutch lever U-bolt
AP8218463
$17,83 Unit Price incl. VAT
3
Left half handlebar
AP8218404
Not Available
4
Hex socket screw M10x60
AP8150481
Not Available
5
Washer
AP8152220
$0,08 Unit Price incl. VAT
6
screw
AP8213028
$3,65 Unit Price incl. VAT
7
Self-locking nut
AP8213388
Not Available
8
Clutch lever adjuster
AP8118104
$10,76 Unit Price incl. VAT
9
screw
AP8118517
$3,65 Unit Price incl. VAT
10
Handgrip - pair
AP8118287
$14,18 Unit Price incl. VAT
11
Anti.v weight, black
AP8202134
Not Available
12
Clutch control complete
AP8218342
Not Available
13
Clutch adjuster sleeve
AP8120271
Not Available
14
Clutch cable
AP8214178
Not Available
15
LH lights selector
AP8224413
Not Available
15
LH lights selector
AP8224116
Not Available
15
LH lights selector
AP8212986
Not Available
16
Hex socket screw M6x35
AP8150285
$0,34 Unit Price incl. VAT
17
Choke cable
AP8214219
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
