Parts Catalog
Front fork II
6
Parts Diagram
Parts Catalog
Front fork I
by
Swing arm - Shock absorber
Front fork II
1
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
15
16
17
18
18
19
20
21
22
23
24
1
Front fork
AP8203815
Not Available
1
Front fork
AP8203981
Not Available
2
Hex socket screw M6x30
AP8123574
Not Available
2
Hex socket screw M6x30
AP8223116
Not Available
3
Douille de coulissement;
AP8203447
Not Available
3
Bush
AP8163294
Not Available
4
Cup
AP8123705
Not Available
4
Oil seal washer
AP8163295
$3,65 Unit Price incl. VAT
5
Joint spi
AP8163296
$5,53 Unit Price incl. VAT
5
Gasket ring
AP8123427
Not Available
6
Stop ring
AP8163297
Not Available
6
Stop ring
AP8123704
Not Available
7
Dust cover
AP8203258
Not Available
7
Pare-poussière
AP8163298
$6,38 Unit Price incl. VAT
8
Spring
AP8223112
Not Available
8
Spring
AP8203956
Not Available
9
Joint torique;
AP8203949
$3,65 Unit Price incl. VAT
9
O-ring
AP8163301
$3,65 Unit Price incl. VAT
10
Plug
AP8203955
Not Available
10
Plug
AP8223114
Not Available
11
Bague seeger;
AP8203950
$3,65 Unit Price incl. VAT
11
Stop ring
AP8163302
Not Available
12
Seal washer
AP8163435
Not Available
12
Rondelle étanchéité
AP8203572
$3,65 Unit Price incl. VAT
13
Vis
AP8163285
$3,65 Unit Price incl. VAT
13
Screw M8x30
AP8203570
Not Available
14
LH hub
AP8203958
Not Available
15
RH hub
AP8203957
Not Available
16
LH sleeve
AP8203990
Not Available
16
LH sleeve
AP8203960
Not Available
17
RH sleeve
AP8203959
Not Available
17
RH sleeve
AP8203989
Not Available
18
Sleeve cpl.
AP8223107
Not Available
19
LH sleeve
AP8223109
Not Available
20
RH sleeve
AP8223108
Not Available
21
Ring
AP8163439
Not Available
22
Shock absorber
AP8223110
Not Available
23
Return spring
AP8223111
Not Available
24
Tampon de fond
AP8163289
$6,30 Unit Price incl. VAT

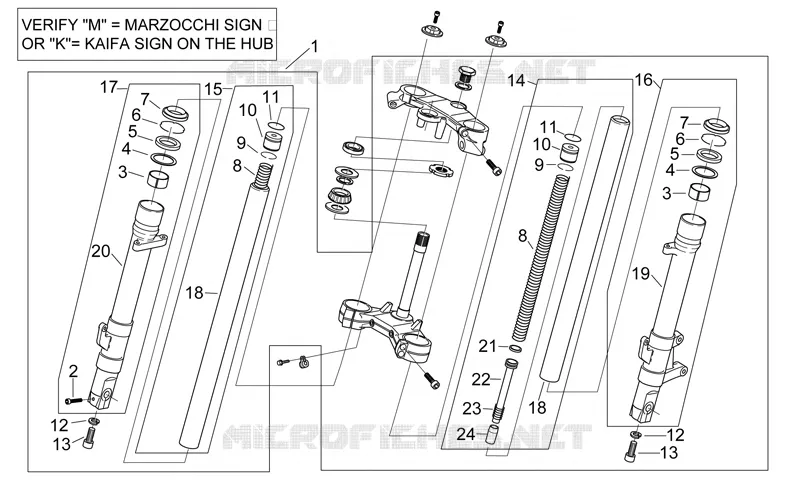

Find the detailed Front fork II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
