1
Engine displacement
50
2
Model
RS
3
Year
2001
4
Trim
RS 50
5
Parts Catalog
Cylinder - Piston
6
Parts Diagram
Parts Catalog
Cylinder head
by
Primary gear shaft
Cylinder - Piston
1
2
3
3
4
5
6
1
Cylinder with piston -NL-D40,3
AP8206404
Not Available
1
Cylinder with piston
AP8206760
Not Available
1
Cylinder with piston
AP8206950
Not Available
1
Cylinder with piston
AP8206979
Not Available
2
Piston assy D40,6
AP8206956
Not Available
2
Piston assy D40,8
AP8206957
Not Available
2
Piston assy D40,3
AP8206955
Not Available
2
Piston assy D40,3
AP8206250
Not Available
3
Stop ring D12
AP8206019
Not Available
4
Piston pin D12x34,5
AP8502846
$9,18 Unit Price incl. VAT
5
Cylinder base gasket
AP8206292
$4,82 Unit Price incl. VAT
6
Oversize piston rings D40,6
AP8206953
Not Available
6
Oversize piston rings D40,8
AP8206954
Not Available
6
Piston ring set D40,3x1,2
AP8206952
Not Available

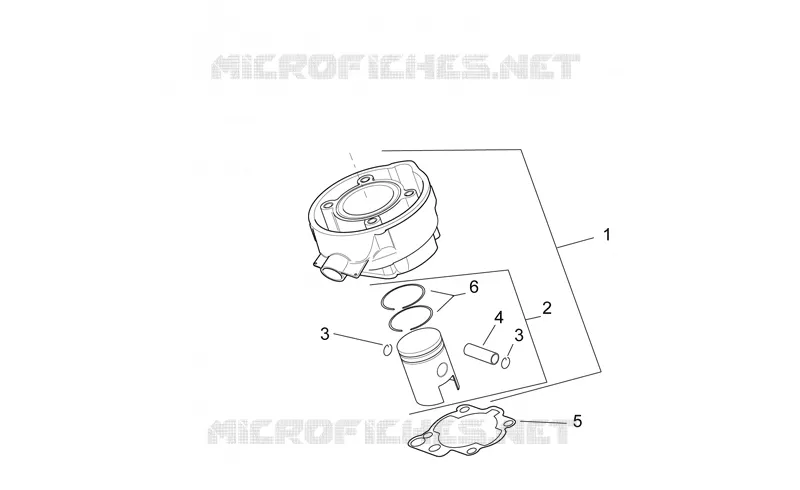

Find the detailed Cylinder - Piston APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
