Engine displacement
50
2
Model
RS
3
Year
2002
4
Trim
RS 50
5
Parts Catalog
Cylinder head
6
Parts Diagram
Parts Catalog
Drive shaft
by
Cylinder - Piston
Cylinder head
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Water hose union
AP8206618
Not Available
2
Cylinder head, grey
AP8206935
Not Available
2
Cylinder head, grey
AP8106692
Not Available
2
Cylinder head
AP8206970
Not Available
2
Cylinder head
AP8206949
Not Available
3
Thermostat
AP8206383
$63,50 Unit Price incl. VAT
4
Bougie BR9ES
AP8206915
$6,75 Unit Price incl. VAT
5
Screw with washer M4x10
AP8502559
Not Available
6
Gasket 14,1x22x1
AP8508560
Not Available
7
Oil plug seal D8x14
AP8502759
Not Available
8
Cap self-locking nut M7x1
AP8206427
$3,65 Unit Price incl. VAT
9
Spring washer
AP8206721
Not Available
10
Stud bolt M7x115
AP8508553
$11,66 Unit Price incl. VAT
11
O-ring 104,3x3,5
AP8206286
$6,60 Unit Price incl. VAT
11
Outer O-ring D2,62
AP8206947
Not Available
12
O-ring D51,5x1,78
AP8206285
$10,95 Unit Price incl. VAT
13
Exhaust pipe fixing spring
AP8507839
Not Available
14
O-ring D25x2,6
AP8206976
Not Available
14
Joint torique
AP8502668
$4,36 Unit Price incl. VAT
15
Spring fixing plate
AP8508882
Not Available
16
Joint torique
AP8206948
$7,83 Unit Price incl. VAT
17
O-ring D7,65x1,78
AP8502655
Not Available

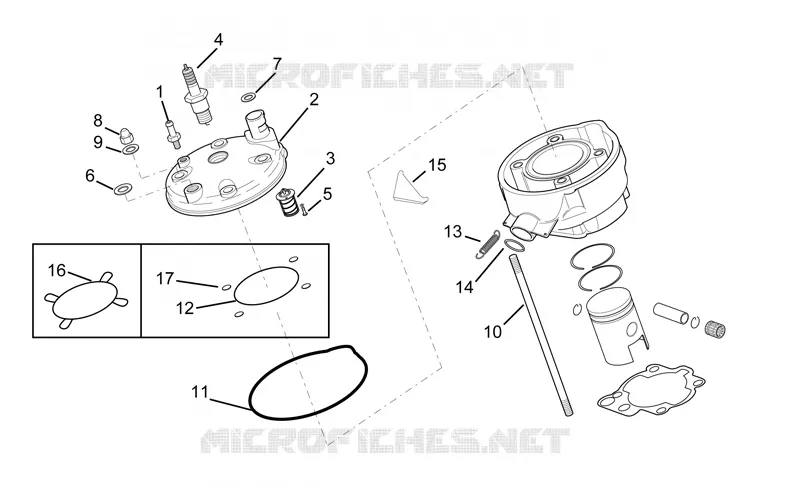

Find the detailed Cylinder head APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
