1
Engine displacement
50
2
Model
RS
3
Year
1999
4
Trim
RS 50
5
Parts Catalog
Carburettor II - SE-TS
6
Parts Diagram
Parts Catalog
Carburettor I - SE-TS
by
Drive shaft

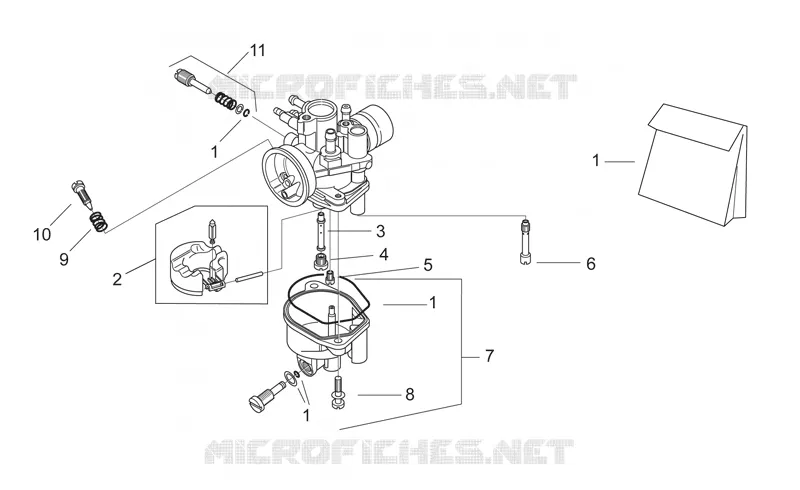

Carburettor II - SE-TS
1
1
1
1
2
3
4
5
6
7
8
9
10
11
1
Gasket envelope
AP8206886
Not Available
2
Float kit
AP8206890
Not Available
3
Needle valve FP 210
AP8206981
Not Available
3
Needle valve FA 211
AP8276055
Not Available
4
Main jet 74
AP8222684
Not Available
4
Main jet 76
AP8276054
Not Available
4
Main jet 100
AP8276024
Not Available
4
Main jet 95
AP8276081
Not Available
4
Main jet 120
AP8106092
$10,76 Unit Price incl. VAT
5
Idle jet 32
AP8206902
Not Available
6
Starter jet 45
AP8206982
$8,91 Unit Price incl. VAT
7
Float chamber
AP8206889
Not Available
8
Float chamber fixing screw
AP8206887
Not Available
9
Adj.min.eng.spd air scr.spring
AP8206894
Not Available
10
Adj.min.eng.speed air screw
AP8206907
Not Available
11
Gas valve adj.screw kit
AP8106820
$8,01 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
