1
Electrical system
861042
Not Available
2
Headlight wiring w/harness
AP8127746
Not Available
2
Câblage feu AV
AP8224666
$64,55 Unit Price incl. VAT
3
Diode de sécurité;
AP8212588
$5,38 Unit Price incl. VAT
4
Flasher unit
AP8127847
Not Available
5
Cache
AP8179271
$10,76 Unit Price incl. VAT
6
Headlight
AP8224646
Not Available
6
Headlight
AP8224586
Not Available
7
Coiffe phare d.
AP8224656
$8,16 Unit Price incl. VAT
8
Taillight
00H01011321
Not Available
9
FAISCEAU FEU ARRIERE
00H01003951
Not Available
10
Lamp
00H01000681
Not Available
11
Lamp
00H01001371
$5,00 Unit Price incl. VAT
12
Coiffe phare g.
AP8224657
$8,16 Unit Price incl. VAT
13
AMPOULE H8 12V - 35W
00H01004131
$46,58 Unit Price incl. VAT
14
RH front turn indicator
AP8127656
Not Available
14
RH front turn indicator
860974
Not Available
15
Clignotant DRT
890213
$13,39 Unit Price incl. VAT
15
ENS. CLIGNOTANT ARR. DROITE
00H01702531
Not Available
16
Clignotant
890214
$13,39 Unit Price incl. VAT
16
Rear LH turn indicator
00H01702541
Not Available
17
RONDELLE FREIN
00034001002
$3,65 Unit Price incl. VAT
18
ECROU HEXAG.10M1,25 DIN934-8.N
00021010002
$3,65 Unit Price incl. VAT
19
Battery
00G03302401
Not Available
20
BUTE POSITIONNEUR BATTERIE
00H01803471
Not Available
21
SUPPORT BATTERIE
00H03302551
Not Available
22
CAVI COLLIER
00D00900531
Not Available
23
COLLIER
00F00900531
$3,65 Unit Price incl. VAT
24
CAVI COLLIER
00D00900531
Not Available
25
Nut
00232080021
$2,95 Unit Price incl. VAT
26
ROND. PLATE MECANISEE
00402080001
$2,95 Unit Price incl. VAT
27
VIS
00000012415
$3,65 Unit Price incl. VAT
28
Guard
00H01000541
Not Available
29
KLAXON COMPLET
00H01005311
Not Available
30
VIS 6M100X20
00G06800021
Not Available
31
Nut D6
00D01501371
Not Available
32
Rem. control switch 12V-80A
584521
Not Available
33
SUPPORT RELAIS
942577
$0,95 Unit Price incl. VAT
34
Voltage regulator
864660
Not Available
34
Voltage regulator
00H01008841
Not Available
35
screw 6M100X16
00D05900081
Not Available
36
FUSIBLE
00H01001911
Not Available
37
Plate
00G03702181
Not Available
38
LH front turn indicator
AP8127657
Not Available
38
LH front turn indicator
860975
Not Available
39
AMPOULE
00H01702011
Not Available
40
Number-plate light
863779
Not Available
41
TUBE PHARE
00H01003131
$3,12 Unit Price incl. VAT
42
VIS TARAUD 3,6X14 NOIR CL89H
00011031401
$3,65 Unit Price incl. VAT

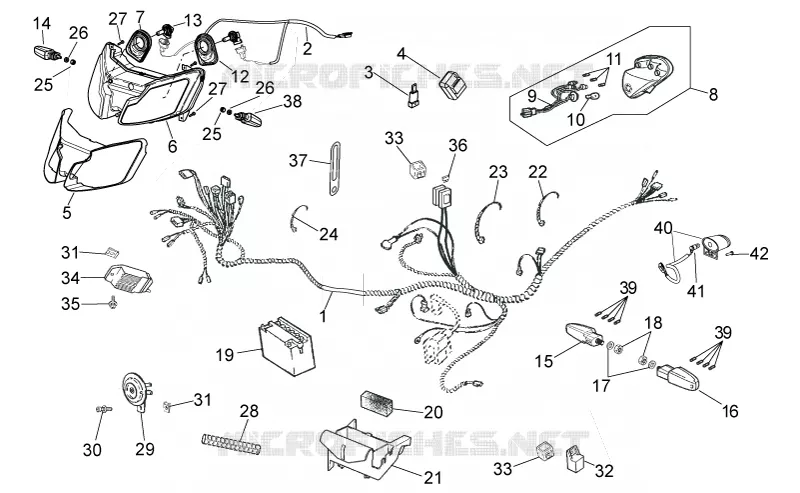

Find the detailed Electrical system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
