Parts Catalog
Front electrical system
6
Parts Diagram
Parts Catalog
Taillight
by
Central electrical system
Front electrical system
1
2
3
4
5
6
6
7
7
8
9
1
Main wiring harness
AP8124691
Not Available
2
Clignotement
AP8124235
$14,18 Unit Price incl. VAT
3
Headlight wiring w/harness
AP8124763
Not Available
4
Cover
AP8149313
Not Available
4
Cover
AP8158865
Not Available
5
Inclination sensor
AP8124954
Not Available
6
Relais démarrage;
AP8224057
$10,00 Unit Price incl. VAT
7
Caoutchouc support relais
AP8220546
$4,62 Unit Price incl. VAT
8
Sensor support
AP8144401
Not Available
9
Fuse 15A
AP8112176
$5,38 Unit Price incl. VAT

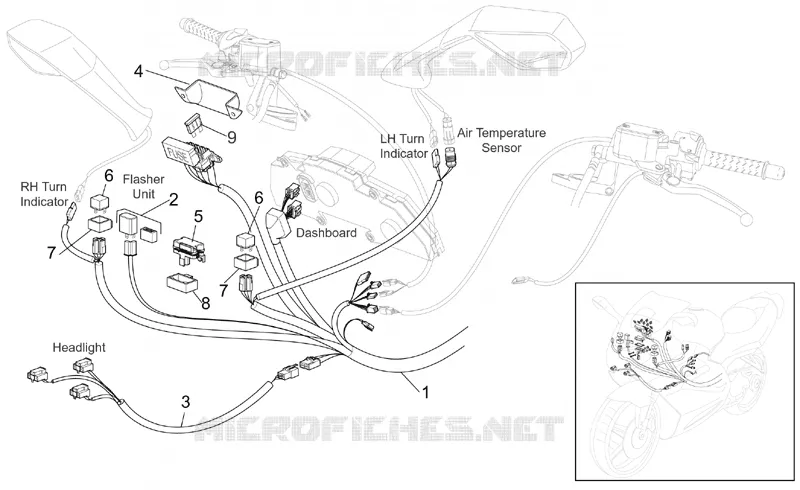

Find the detailed Front electrical system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
