1
Engine displacement
1000
2
Model
RSV
3
Year
1999
4
Trim
RSV 1000
5
Parts Catalog
Crankcases II
6
Parts Diagram
Parts Catalog
Crankcases I
by
Oil pump
Crankcases II
1
1
2
3
4
5
6
7
8
9
10
11
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
29
30
1
Stud bolt m10x171
AP0241580
Not Available
2
Hex socket screw
AP0241932
Not Available
3
O-ring 59,52x2,62
AP0650500
$5,20 Unit Price incl. VAT
4
Oil filter cover
AP0210415
Not Available
5
Filtre à huile
AP0256187
$12,02 Unit Price incl. VAT
6
Contact screw
AP0241850
Not Available
7
Magnetic drain plug M12x1,5
AP0241782
Not Available
8
Gasket ring 6x10
AP0230415
Not Available
9
Vis
AP0241081
$3,65 Unit Price incl. VAT
10
Jet 75
AP0268757
Not Available
11
Ball bearing 6206
AP0932585
Not Available
12
Short head screw
AP0241531
$9,41 Unit Price incl. VAT
13
Ball bearing 6304
AP0832144
Not Available
14
Bearing 6003
AP0232625
Not Available
15
Short head screw
AP0241531
$9,41 Unit Price incl. VAT
16
Hex socket screw M6x25
AP0840861
$3,65 Unit Price incl. VAT
17
Angular bearing 3206
AP0632124
Not Available
18
Ball bearing 6205
AP0932428
Not Available
19
Ball bearing 16101
AP0932335
Not Available
20
Oil strainer
AP0256495
Not Available
20
Oil strainer
AP0256497
Not Available
21
Oil sprayer pipe
AP0256525
Not Available
21
Oil sprayer pipe
AP0256526
Not Available
22
Gasket
AP0650335
Not Available
23
Oil seal 40x47x7,5
AP0850050
Not Available
24
Oil seal 12x28x7
AP0250450
Not Available
25
Oil seal 11x22x7
AP0650320
Not Available
26
Chain guide
AP0236370
Not Available
27
Clutch disengagement flange
AP0259500
Not Available
28
Hex socket screw M6x45
AP0241821
Not Available
29
Hex socket screw
AP0241261
Not Available
30
Hex socket screw M6x80
AP0241501
Not Available

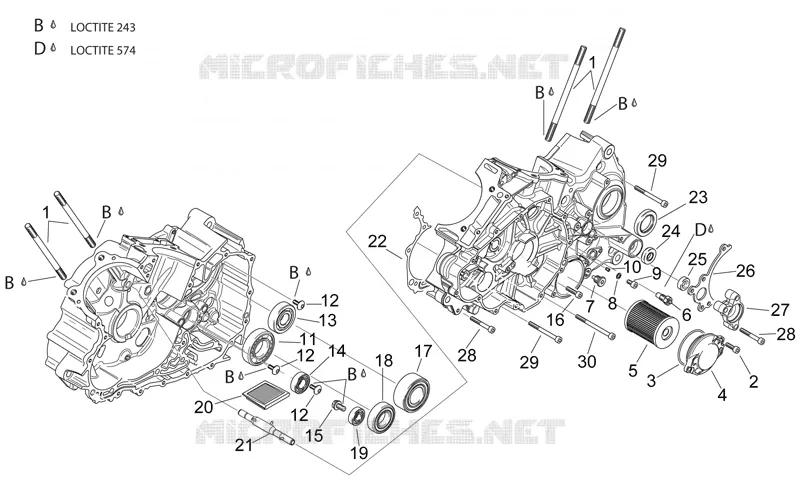

Find the detailed Crankcases II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
