Engine displacement
1000
2
Model
RSV
3
Year
2000
4
Trim
RSV 1000
5
Parts Catalog
Rear electrical system
6
Parts Diagram
Parts Catalog
Central electrical system
by
Lock hardware kit
Rear electrical system
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
1
Capuchon borne
AP8120218
$5,38 Unit Price incl. VAT
2
Caoutchouc
AP8220150
$1,42 Unit Price incl. VAT
3
Rondelle
AP8150159
$3,65 Unit Price incl. VAT
4
Caoutchouc p-fusibles
AP8120754
$6,30 Unit Price incl. VAT
5
Ground-battery lead
AP8124439
$41,50 Unit Price incl. VAT
6
Main wiring harness
AP8124836
Not Available
6
Main wiring harness
AP8124441
Not Available
7
Capuchon pôle pos.
AP8112940
$5,38 Unit Price incl. VAT
8
Inclination sensor
AP8124266
Not Available
9
Rubber sensor support
AP8144046
Not Available
10
ECU prot.box
AP8138776
$17,07 Unit Price incl. VAT
11
Couv. boîte centrale;
AP8138596
$13,53 Unit Price incl. VAT
12
Relais démarrage
AP8124636
$21,09 Unit Price incl. VAT
13
Relay 12V-20A
AP8212469
Not Available
14
Diods
AP8124289
Not Available
15
Relay-starter motor cable
AP8124269
Not Available
16
Ecrou
AP8150026
$0,16 Unit Price incl. VAT
17
Spring washer 6,4x11x0,5*
AP8150429
Not Available
18
Caoutchouc
AP8220283
$0,75 Unit Price incl. VAT
19
ECU
AP0265474
Not Available
19
ECU
AP0265476
Not Available
19
ECU
AP0265471
Not Available
20
Fuse 30a
AP8124273
Not Available
21
Caoutchouc p-fusibles
AP8112811
$6,40 Unit Price incl. VAT

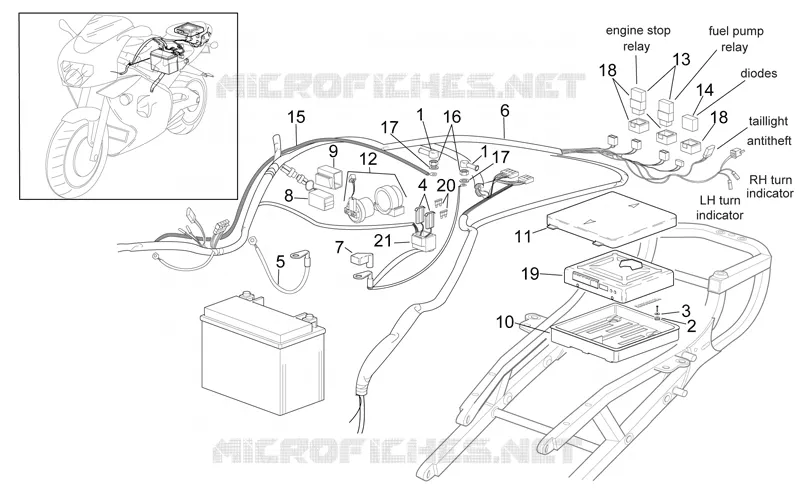

Find the detailed Rear electrical system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
