1
Engine displacement
1000
2
Model
RSV
3
Year
1999
4
Trim
RSV 1000 SP
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Front master cilinder
by
Water coolers
Cooling system
1
2
3
3
3
3
3
4
5
6
7
8
8
8
8
8
8
9
10
11
12
13
14
14
14
14
15
16
17
18
19
1
Raccord 3 voies
AP8102431
$6,30 Unit Price incl. VAT
2
Rondelle en aluminium
AP8121837
$3,65 Unit Price incl. VAT
3
Collier serr. Tube;
AP8104097
$5,38 Unit Price incl. VAT
4
Three-way manifold
AP8102677
Not Available
5
Tee union D20
AP8101916
Not Available
6
Tuyau eau coll.-rad.
AP8120978
$11,69 Unit Price incl. VAT
7
Tuyau moteur-collec.
AP8120979
$5,38 Unit Price incl. VAT
8
Collier clic
AP8101927
$5,38 Unit Price incl. VAT
9
Tuy.thermos.-pompe
AP8144033
$49,51 Unit Price incl. VAT
10
Tuyau therm-radiateur
AP8144034
$7,23 Unit Price incl. VAT
11
Tuy.purge racc.-col.;
AP8144094
$6,30 Unit Price incl. VAT
12
Tuy.purge rad-racc.;
AP8144093
$5,38 Unit Price incl. VAT
13
Tuyau purge collec.;
AP8144092
$6,30 Unit Price incl. VAT
14
Collier clic
AP8102764
$1,86 Unit Price incl. VAT
15
Groupe thermostat
AP8102614
$67,34 Unit Price incl. VAT
16
Thermostat-engine pipe
AP8144229
Not Available
17
Thermal switch
AP8112939
Not Available
18
Three way manifold/joint
AP8144230
Not Available
19
Engine pipe/'T' joint
AP8144236
Not Available

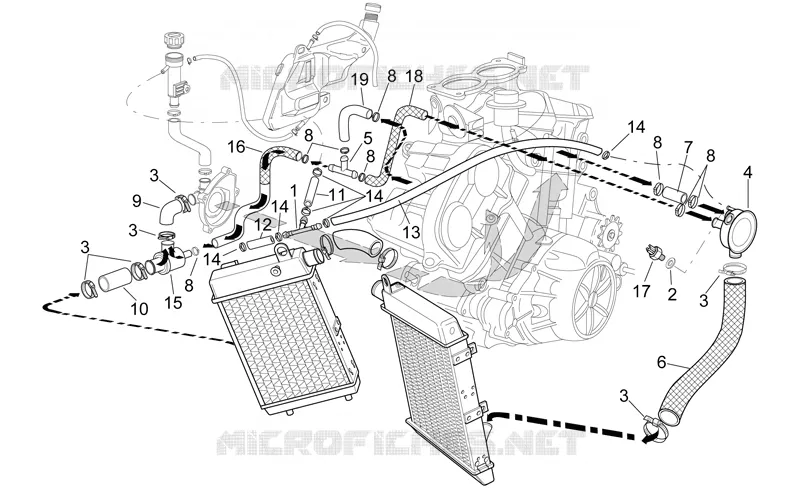

Find the detailed Cooling system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for RSV 1000 SP

Frame I

Frame I

for RSV 1000 SP from 1999

Frame II

Frame II

for RSV 1000 SP from 1999

Foot rests - Lateral stand

Foot rests - Lateral stand

for RSV 1000 SP from 1999

Steering

Steering

for RSV 1000 SP from 1999

Front fork

Front fork

for RSV 1000 SP from 1999

Swing arm

Swing arm

for RSV 1000 SP from 1999

Connecting rod - rear shock abs.

Connecting rod - rear shock abs.

for RSV 1000 SP from 1999

Front body - Front fairing

Front body - Front fairing

for RSV 1000 SP from 1999

Front body - Duct

Front body - Duct

for RSV 1000 SP from 1999

Front body - Front mudguard

Front body - Front mudguard

for RSV 1000 SP from 1999

Central body - Upper fairings

Central body - Upper fairings

for RSV 1000 SP from 1999

Central body - Lower fairings

Central body - Lower fairings

for RSV 1000 SP from 1999

Fuel tank

Fuel tank

for RSV 1000 SP from 1999

Saddle

Saddle

for RSV 1000 SP from 1999

Rear body - Rear fairing

Rear body - Rear fairing

for RSV 1000 SP from 1999

Rear body - Undersaddle

Rear body - Undersaddle

for RSV 1000 SP from 1999

Dashboard

Dashboard

for RSV 1000 SP from 1999

Handlebar

Handlebar

for RSV 1000 SP from 1999

Clutch pump

Clutch pump

for RSV 1000 SP from 1999

Front master cilinder

Front master cilinder

for RSV 1000 SP from 1999

Cooling system

Cooling system

for RSV 1000 SP from 1999

Water coolers

Water coolers

for RSV 1000 SP from 1999

Expansion tank

Expansion tank

for RSV 1000 SP from 1999

Oil tank

Oil tank

for RSV 1000 SP from 1999

Air box

Air box

for RSV 1000 SP from 1999

Fuel pump I

Fuel pump I

for RSV 1000 SP from 1999

Fuel pump II

Fuel pump II

for RSV 1000 SP from 1999

Exhaust pipe

Exhaust pipe

for RSV 1000 SP from 1999

Front wheel

Front wheel

for RSV 1000 SP from 1999

Front brake caliper

Front brake caliper

for RSV 1000 SP from 1999

Rear wheel

Rear wheel

for RSV 1000 SP from 1999

Rear master cylinder

Rear master cylinder

for RSV 1000 SP from 1999

Rear brake caliper

Rear brake caliper

for RSV 1000 SP from 1999

Lights

Lights

for RSV 1000 SP from 1999

Front electrical system

Front electrical system

for RSV 1000 SP from 1999

Central electrical system

Central electrical system

for RSV 1000 SP from 1999

Rear electrical system

Rear electrical system

for RSV 1000 SP from 1999

Lock hardware kit

Lock hardware kit

for RSV 1000 SP from 1999

Decal and plate set

Decal and plate set

for RSV 1000 SP from 1999

Engine

Engine

for RSV 1000 SP from 1999

Crankcases I

Crankcases I

for RSV 1000 SP from 1999

Crankcases II

Crankcases II

for RSV 1000 SP from 1999

Oil pump

Oil pump

for RSV 1000 SP from 1999

Crankshaft I

Crankshaft I

for RSV 1000 SP from 1999

Crankshaft II

Crankshaft II

for RSV 1000 SP from 1999

Cylinder head I

Cylinder head I

for RSV 1000 SP from 1999

Cylinder headII

Cylinder headII

for RSV 1000 SP from 1999

Valves pads

Valves pads

for RSV 1000 SP from 1999

Front cylinder timing system

Front cylinder timing system

for RSV 1000 SP from 1999

Rear cylinder timing system

Rear cylinder timing system

for RSV 1000 SP from 1999

Gear box selector

Gear box selector

for RSV 1000 SP from 1999

Gear box

Gear box

for RSV 1000 SP from 1999

Clutch

Clutch

for RSV 1000 SP from 1999

Water pump

Water pump

for RSV 1000 SP from 1999

Ignition unit

Ignition unit

for RSV 1000 SP from 1999

Throttle body

Throttle body

for RSV 1000 SP from 1999

Sealing and lubricating agents

Sealing and lubricating agents

for RSV 1000 SP from 1999

Completing part

Completing part

for RSV 1000 SP from 1999

Acc. - Mechanics anti-theft

Acc. - Mechanics anti-theft

for RSV 1000 SP from 1999

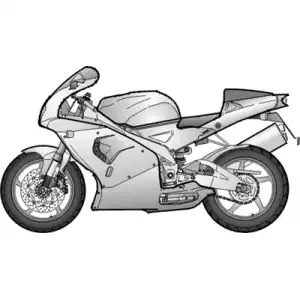

APRILIA RSV 1000 SP 1999
