1
Engine displacement
1000
2
Model
RSV
3
Year
2009
4
Trim
RSV4 1000 R
5
Parts Catalog
Front fork
6
Parts Diagram
Parts Catalog
Fuel vapour recover system
by
Central stand
Front fork
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
1
RH radial sleeve
854594
Not Available
2
LH radial sleeve
854595
Not Available
3
Sleeve
AP8163494
Not Available
4
Plunger attachment bush
AP8123810
$5,20 Unit Price incl. VAT
5
Spring
AP8163495
$24,90 Unit Price incl. VAT
6
Preload tube cpl.
AP8123832
$70,25 Unit Price incl. VAT
7
Spacer
AP8123835
$8,01 Unit Price incl. VAT
8
Washer
AP8123836
$5,38 Unit Price incl. VAT
9
Plunger, complete
AP8163496
Not Available
10
Washer
AP8123816
$3,65 Unit Price incl. VAT
11
Ring
AP8123815
$8,01 Unit Price incl. VAT
12
Sleeve plug cpl.
AP8123817
$244,99 Unit Price incl. VAT
13
O-ring
AP8123834
$3,65 Unit Price incl. VAT
14
O-ring
AP8123819
$3,65 Unit Price incl. VAT
15
O-ring
AP8123820
$3,65 Unit Price incl. VAT
16
Stop ring
AP8123821
$3,65 Unit Price incl. VAT
17
Screw w/ flange M8x40
AP8152290
$3,65 Unit Price incl. VAT
18
Hub+RH fork leg
AP8163492
$494,60 Unit Price incl. VAT
19
Hub+LH fork leg
AP8163493
$494,60 Unit Price incl. VAT
20
Dust cover
AP8123824
$8,65 Unit Price incl. VAT
21
Circlip
AP8123806
Not Available
22
Oil seal
AP8123825
$8,65 Unit Price incl. VAT
23
Ring
856043
$0,86 Unit Price incl. VAT
24
Bush D.47,1xd.43xh.20
AP8123827
Not Available
25
Bush D.44,5xd.41,1xh.20
AP8123828
Not Available
26
Special washer
AP8123811
$3,65 Unit Price incl. VAT
27
screw M10x1,5
AP8123812
$6,60 Unit Price incl. VAT

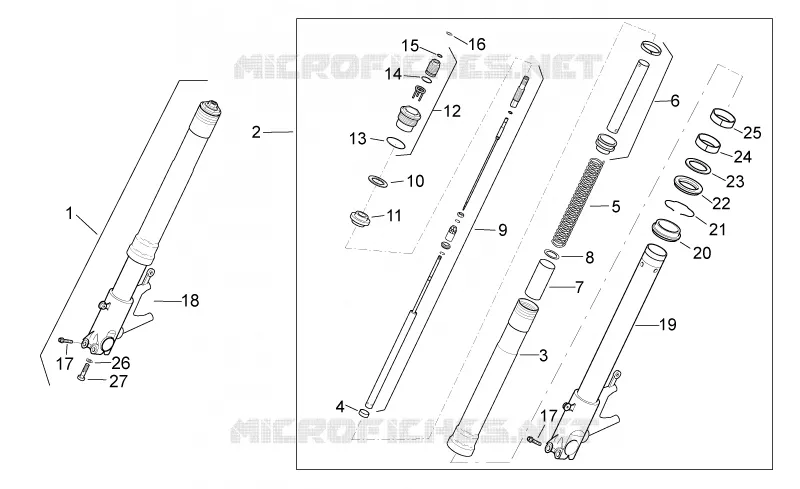

Find the detailed Front fork APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for RSV4 1000 R

Rear brake caliper

Rear brake caliper

for RSV4 1000 R from 2009

Rear master cylinder

Rear master cylinder

for RSV4 1000 R from 2009

Throttle body

Throttle body

for RSV4 1000 R from 2009

Rear body III

Rear body III

for RSV4 1000 R from 2009

Rear shock absorber

Rear shock absorber

for RSV4 1000 R from 2009

Rear body II

Rear body II

for RSV4 1000 R from 2009

Rear wheel

Rear wheel

for RSV4 1000 R from 2009

Front brake caliper

Front brake caliper

for RSV4 1000 R from 2009

Ignition unit

Ignition unit

for RSV4 1000 R from 2009

Crank-case I

Crank-case I

for RSV4 1000 R from 2009

Taillight

Taillight

for RSV4 1000 R from 2009

Front body III

Front body III

for RSV4 1000 R from 2009

Oil radiator

Oil radiator

for RSV4 1000 R from 2009

Rear body I

Rear body I

for RSV4 1000 R from 2009

Lubrication

Lubrication

for RSV4 1000 R from 2009

Engine

Engine

for RSV4 1000 R from 2009

Exhaust pipe

Exhaust pipe

for RSV4 1000 R from 2009

Front cylinder timing system

Front cylinder timing system

for RSV4 1000 R from 2009

Rear body II

Rear body II

for RSV4 1000 R from 2009

Plate set and decal

Plate set and decal

for RSV4 1000 R from 2009

Undersaddle

Undersaddle

for RSV4 1000 R from 2009

Frame I

Frame I

for RSV4 1000 R from 2009

Lock hardware kit

Lock hardware kit

for RSV4 1000 R from 2009

Dashboard

Dashboard

for RSV4 1000 R from 2009

Clutch II

Clutch II

for RSV4 1000 R from 2009

Headlight

Headlight

for RSV4 1000 R from 2009

Air box

Air box

for RSV4 1000 R from 2009

Fuel vapour recover system

Fuel vapour recover system

for RSV4 1000 R from 2009

Front fork

Front fork

for RSV4 1000 R from 2009

Central stand

Central stand

for RSV4 1000 R from 2009

Front wheel

Front wheel

for RSV4 1000 R from 2009

Cooling system

Cooling system

for RSV4 1000 R from 2009

Swing arm

Swing arm

for RSV4 1000 R from 2009

Saddle

Saddle

for RSV4 1000 R from 2009

Valves pads

Valves pads

for RSV4 1000 R from 2009

Fuel tank

Fuel tank

for RSV4 1000 R from 2009

Drive shaft

Drive shaft

for RSV4 1000 R from 2009

Foot rests

Foot rests

for RSV4 1000 R from 2009

Cylinder head - valves

Cylinder head - valves

for RSV4 1000 R from 2009

Cover

Cover

for RSV4 1000 R from 2009

Valves cover

Valves cover

for RSV4 1000 R from 2009

Clutch pump

Clutch pump

for RSV4 1000 R from 2009

Clutch cover

Clutch cover

for RSV4 1000 R from 2009

Gear box

Gear box

for RSV4 1000 R from 2009

Water pump

Water pump

for RSV4 1000 R from 2009

Clutch I

Clutch I

for RSV4 1000 R from 2009

Front body II

Front body II

for RSV4 1000 R from 2009

Electrical system III

Electrical system III

for RSV4 1000 R from 2009

Steering

Steering

for RSV4 1000 R from 2009

Secondary air

Secondary air

for RSV4 1000 R from 2009

Front master cilinder

Front master cilinder

for RSV4 1000 R from 2009

Front body I

Front body I

for RSV4 1000 R from 2009

Cylinder - Piston

Cylinder - Piston

for RSV4 1000 R from 2009

Electrical system II

Electrical system II

for RSV4 1000 R from 2009

Electrical system I

Electrical system I

for RSV4 1000 R from 2009

Rear cylinder timing system

Rear cylinder timing system

for RSV4 1000 R from 2009

Frame II

Frame II

for RSV4 1000 R from 2009

Handlebar - Controls

Handlebar - Controls

for RSV4 1000 R from 2009

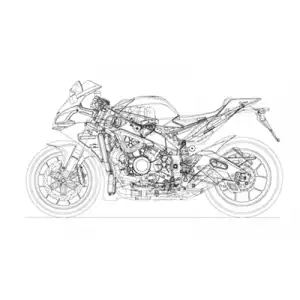

APRILIA RSV4 1000 R 2009
