1
Engine displacement
1000
2
Model
RSV4
3
Year
2013
4
Trim
RSV4 1000 APRC Factory ABS
5
Parts Catalog
Fuel vapour recover system
6
Parts Diagram
Parts Catalog
Handlebar - Controls
by
Exhaust pipe I
Fuel vapour recover system
1
2
3
4
5
6
6
7
8
9
9
10
11
12
13
14
15
15
15
15
16
17
17
18
19
20
21
22
23
23
24
25
25
1
Filtre à charbon
AP8102678
$83,70 Unit Price incl. VAT
2
Collier serr. Tube
AP8102520
$0,26 Unit Price incl. VAT
3
Tuyau essence D.8X13
890499
$4,46 Unit Price incl. VAT
4
TUYAU
856063
$41,29 Unit Price incl. VAT
5
Guide-câble
AP8221150
$3,65 Unit Price incl. VAT
6
Collier clic
AP8102239
$0,84 Unit Price incl. VAT
7
Soupape
860138
$15,58 Unit Price incl. VAT
8
Collier clic
AP8120446
$0,75 Unit Price incl. VAT
9
Queue de étranglement
AP8121267
$11,69 Unit Price incl. VAT
10
Collier serr. Tube
AP8102998
$3,65 Unit Price incl. VAT
11
pipe SAE 30 d.11,11x4,8
856062
$19,10 Unit Price incl. VAT
12
Collier clic
AP8102764
$1,86 Unit Price incl. VAT
13
Passe-câble
AP8221311
$5,38 Unit Price incl. VAT
14
Tuyau
CM178413
$4,82 Unit Price incl. VAT
15
Collier
CM001901
$0,76 Unit Price incl. VAT
16
Tuyau
CM178411
$4,82 Unit Price incl. VAT
17
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
18
RACCORD T
828325
$1,57 Unit Price incl. VAT
19
Tuyau
CM178412
$4,82 Unit Price incl. VAT
20
Collier
AP8102688
$31,97 Unit Price incl. VAT
21
Collier
AP8102719
$26,74 Unit Price incl. VAT
22
Support filtre à charbon
894901
$12,66 Unit Price incl. VAT
23
Douille
AP8121032
$0,59 Unit Price incl. VAT
24
Entretoise
894933
$12,15 Unit Price incl. VAT
25
Vis
AP8150044
$3,65 Unit Price incl. VAT

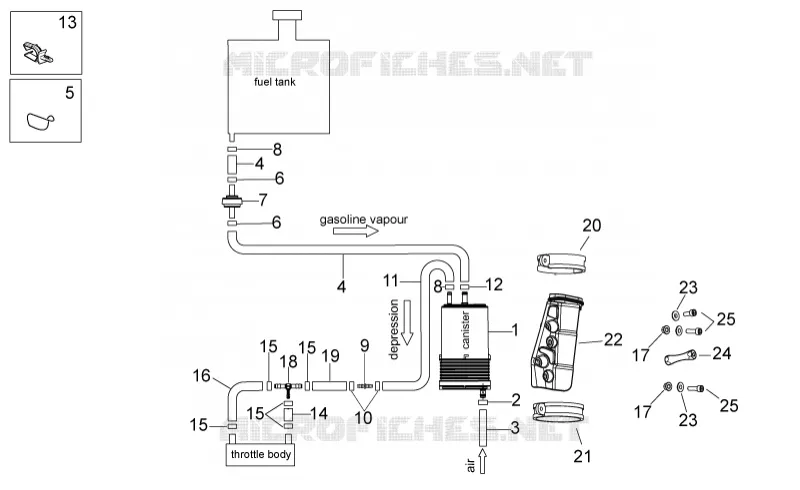

Find the detailed Fuel vapour recover system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
