1
Engine displacement
1000
2
Model
RSV4
3
Year
2014
4
Trim
RSV4 1000 APRC Factory ABS
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Clutch I
by
Clutch II
Front wheel
1
2
3
4
5
5
6
7
8
8
9
10
11
11
12
13
14
15
1
Pneu avant
897596
$485,43 Unit Price incl. VAT
2
Front wheel, gold
896170
Not Available
2
Front wheel
894846
Not Available
3
Disque frein avant D.320
893135
$360,86 Unit Price incl. VAT
4
LH front brake disc
893136
Not Available
5
Roulement
AP8110094
$15,23 Unit Price incl. VAT
6
Entretoise interne
AP8125843
$18,12 Unit Price incl. VAT
7
Front wheel spindle
AP8125827
Not Available
8
Bague d'étanchéité
AP8125841
$3,70 Unit Price incl. VAT
9
Entretoise ext. D roue av.
AP8125728
$7,42 Unit Price incl. VAT
10
Ecrou de roue
AP8152335
$8,12 Unit Price incl. VAT
11
Vis bride
AP8152286
$0,25 Unit Price incl. VAT
12
Rondelle
AP8152323
$3,70 Unit Price incl. VAT
13
Soupape tubeless
AP8104728
$15,82 Unit Price incl. VAT
14
Anneau élastique
AP8125842
$0,67 Unit Price incl. VAT
15
CABLE COMPTEUR
AP8128189
$106,52 Unit Price incl. VAT

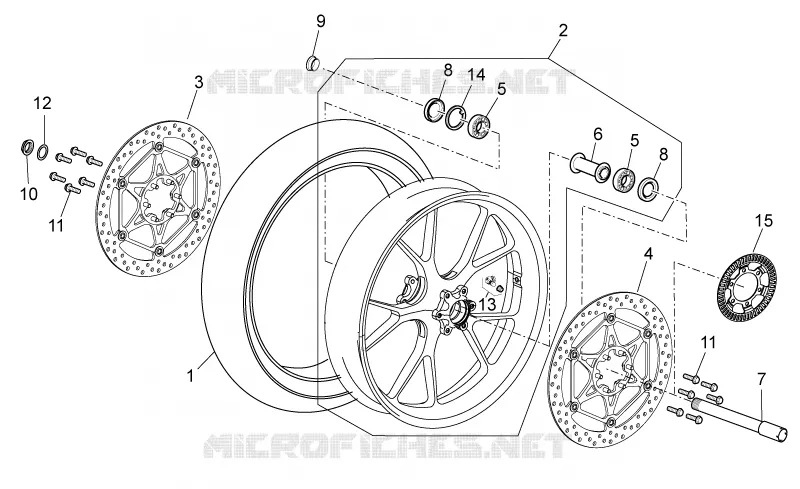

Find the detailed Front wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
