Cylinder with piston for APRILIA Dorsoduro from 2011

Cylinder with piston

1

Groupe cylindre

1A000220

$736,25 Unit Price incl. VAT

1

Cylinder with piston

875889

Not Available

2

Piston cpl. "B"

1A0002210B

$422,55 Unit Price incl. VAT

2

Piston assy "B"

B0132565002

Not Available

2

Piston cpl. "D"

1A0002210D

$422,55 Unit Price incl. VAT

2

Piston assy "A"

B0132565001

Not Available

2

Piston cpl. "A"

1A0002210A

$422,55 Unit Price incl. VAT

2

Piston assy "D"

B0132565004

Not Available

2

Piston cpl. "C"

1A0002210C

$422,55 Unit Price incl. VAT

2

Piston assy "C"

B0132565003

Not Available

3

Segment

B013265

$38,42 Unit Price incl. VAT

4

Segm.racleur d'huile

B013266

$31,33 Unit Price incl. VAT

5

Segment

1A004441

$49,04 Unit Price incl. VAT

6

Axe

876707

$23,07 Unit Price incl. VAT

7

Vis

874567

$2,96 Unit Price incl. VAT

8

Joint base cylindre

880079

$0,82 Unit Price incl. VAT

9

Plaquette

880233

$1,54 Unit Price incl. VAT

10

Vis bride

874554

$0,25 Unit Price incl. VAT

11

Chain tensioner bracket

880235

Not Available

12

Vis bride

874549

$0,34 Unit Price incl. VAT

13

Joint tête

875397

$20,88 Unit Price incl. VAT

14

Gicleur carter

825597

$0,94 Unit Price incl. VAT

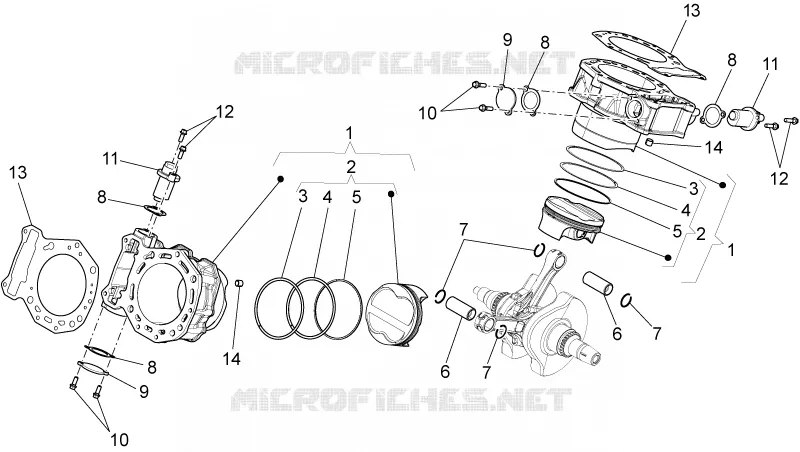

Find the detailed Cylinder with piston APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
