1
Engine displacement
1000
2
Model
RSV4
3
Year
2015
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Steering
6
Parts Diagram
Parts Catalog
Front electrical system
by
Plate set / Various
Steering
1
2
3
4
4
5
6
6
7
8
9
10
11
11
12
13
14
15
15
16
17
1
Plaque
2B001450
$386,25 Unit Price incl. VAT
2
Lower plate
2B001472
$1 156,73 Unit Price incl. VAT
3
AMORTISSEUR DE DIRECTION
2B001706
$1 219,59 Unit Price incl. VAT
4
Axial ball bearing
AP8110077
$37,80 Unit Price incl. VAT
5
Plaq.sécu.direction
AP8121207
$5,38 Unit Price incl. VAT
6
Anneau pare-pouss.
AP8123641
$8,12 Unit Price incl. VAT
7
Bague
AP8123642
$10,64 Unit Price incl. VAT
8
Contre-bague
AP8123643
$10,64 Unit Price incl. VAT
9
Douille fx. pl. sup.
AP8163170
$176,76 Unit Price incl. VAT
10
Rondelle bouchon fourreau
AP8152442
$1,37 Unit Price incl. VAT
11
Vis
AP8150236
$0,55 Unit Price incl. VAT
12
Vis bride
AP8152283
$0,32 Unit Price incl. VAT
13
Vis
AP8150220
$0,17 Unit Price incl. VAT
14
Douille
AP8121718
$3,38 Unit Price incl. VAT
15
Vis tcc
AP8150540
$5,27 Unit Price incl. VAT
16
Front fork lower closing
893113
Not Available
17
Vis bride
AP8152277
$0,25 Unit Price incl. VAT

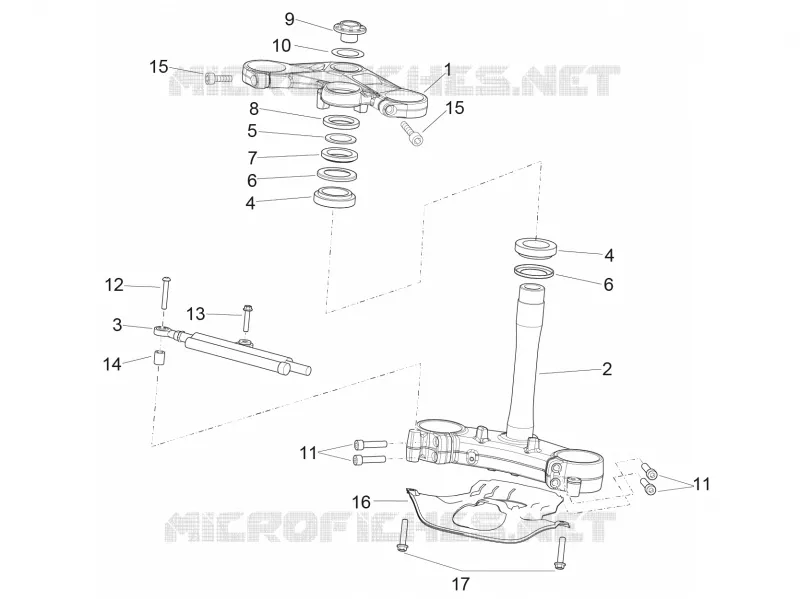

Find the detailed Steering APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
