1
Engine displacement
1000
2
Model
RSV4
3
Year
2016
4
Trim
RSV4 1000 RR
5
Parts Catalog
Shock absorber
6
Parts Diagram
Parts Catalog
Tank cover
by
Front master cilinder
Shock absorber
1
2
2
3
3
3
3
4
4
4
4
5
5
5
6
7
7
8
8
8
8
9
10
11
11
1
AMORTISSEUR ARRIERE
2B001399
$977,40 Unit Price incl. VAT
2
Double biellette
858918
$17,20 Unit Price incl. VAT
3
Cage à rouleaux
AP8110065
$7,02 Unit Price incl. VAT
4
Joint spi
AP8110068
$3,65 Unit Price incl. VAT
5
Axe
AP8146518
$8,91 Unit Price incl. VAT
6
Vis
AP8152412
$10,95 Unit Price incl. VAT
7
"Douille en ""T"""
AP8121155
$1,77 Unit Price incl. VAT
8
Ecrou autobloqu.
AP8152301
$0,59 Unit Price incl. VAT
9
Bielle simple complète
AP81465164
$232,70 Unit Price incl. VAT
10
Vis
AP8152411
$13,28 Unit Price incl. VAT
11
Vis bride
AP8152413
$11,41 Unit Price incl. VAT

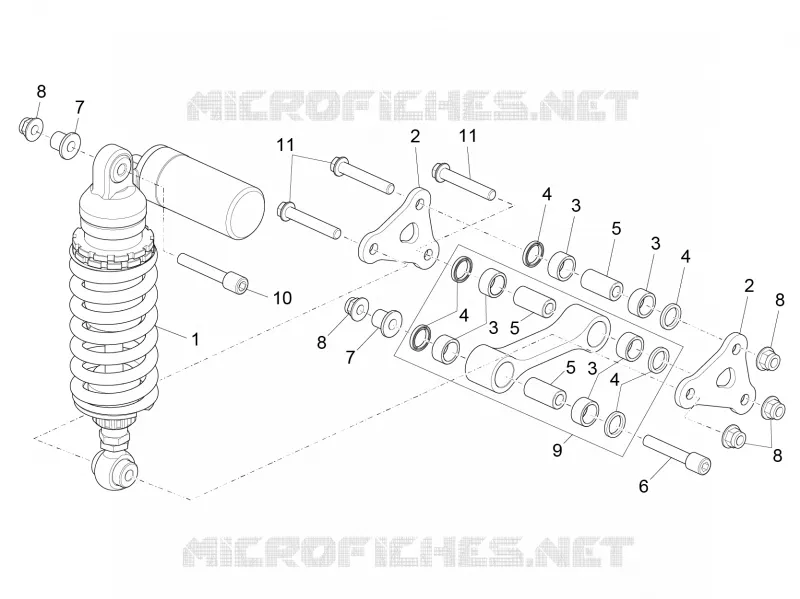

Find the detailed Shock absorber APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
