Front cylinder timing system for APRILIA Shiver from 2007

Front cylinder timing system

1

Front intake camshaft

873960

Not Available

2

Front exhaust camshaft

873961

Not Available

3

Axial lock plate

874176

Not Available

4

Timing system gear cpl.

874596

$80,84 Unit Price incl. VAT

5

Front timing system gear cpl.

849909

Not Available

6

VIS

974228

$2,40 Unit Price incl. VAT

7

RONDELLE

849771

$0,19 Unit Price incl. VAT

8

ECROU

849719

$1,39 Unit Price incl. VAT

9

Special screw

874591

Not Available

10

RONDELLE

849817

$1,15 Unit Price incl. VAT

11

CIRCLIPS

873233

$0,15 Unit Price incl. VAT

12

Cylinder head assy.

849213

Not Available

12

CULASSE

875413

$731,63 Unit Price incl. VAT

13

Vis

878439

$0,15 Unit Price incl. VAT

14

Chaîne de distribution

849827

$39,32 Unit Price incl. VAT

15

DOIGT

871798

$5,68 Unit Price incl. VAT

16

TIGE

871748

$6,54 Unit Price incl. VAT

17

VIS

874185

$0,05 Unit Price incl. VAT

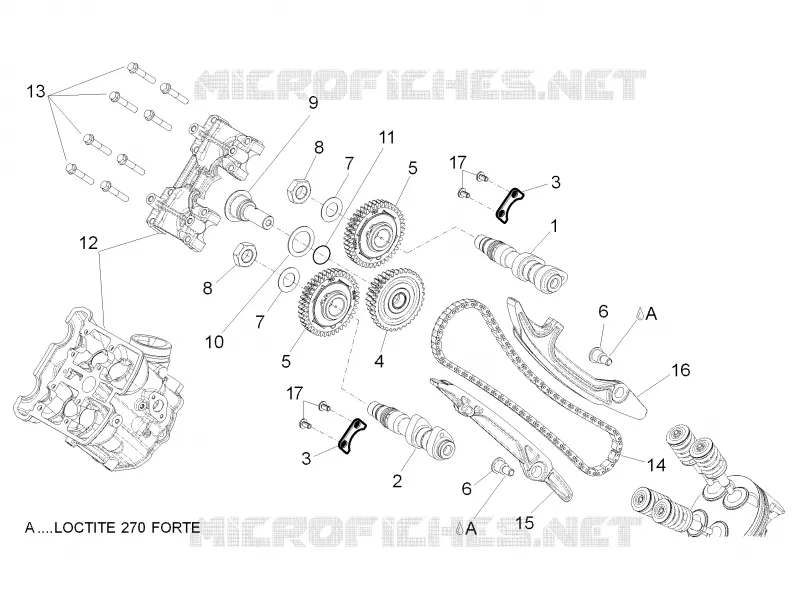

Find the detailed Front cylinder timing system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
