Front body - Front mudguard for APRILIA Shiver from 2011

Front body - Front mudguard

1

Front mudguard, Ap. black

86054000XN6

Not Available

1

Front mudguard, black

86054000XN5

Not Available

1

Garde-boue avant peint rouge

86054000XR4

$330,30 Unit Price incl. VAT

2

Garde-b AV.noir

85166600XN3

$15,22 Unit Price incl. VAT

3

Vis bride

AP8152339

$3,65 Unit Price incl. VAT

4

Clip

AP8102375

$0,69 Unit Price incl. VAT

5

Rondelle élastique courbe

AP8150376

$0,08 Unit Price incl. VAT

6

Coupole

895992

$21,11 Unit Price incl. VAT

7

RH side panel, silver

89599300XE4

Not Available

7

black painted cup. right side cover

89599300XN5

Not Available

7

RH side panel, red

89599300XR4

Not Available

7

Aile D

89599300BM

$50,86 Unit Price incl. VAT

8

black painted cup. left side cover

89599400XN5

Not Available

8

Cup. v.white left side cover

89599400BM

Not Available

8

LH side panel, red

89599400XR4

Not Available

8

FLANC GAUCHE

89599400XE4

$153,70 Unit Price incl. VAT

9

Vis

AP8150359

$3,65 Unit Price incl. VAT

10

Caoutchouc avec insert

AP8144564

$4,49 Unit Price incl. VAT

11

Clip

AP8102381

$1,09 Unit Price incl. VAT

12

Vis taraud pour plast. Inox

AP8150413

$0,08 Unit Price incl. VAT

13

Vis taraud pour plast. Inox

AP8150420

$3,65 Unit Price incl. VAT

14

Central dashboard - Front f.

895995

Not Available

15

Eponge adhésive

AP8117033

$5,38 Unit Price incl. VAT

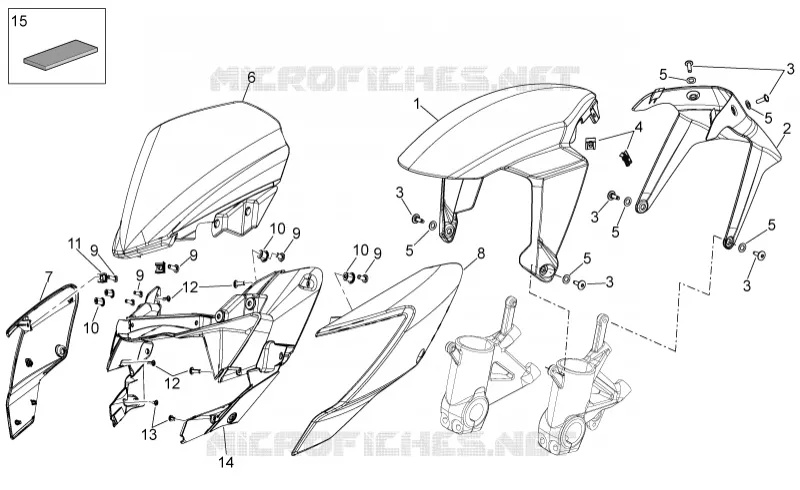

Find the detailed Front body - Front mudguard APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
