Clutch for APRILIA Classic from 1995

Clutch

1

Clutch - pair Z=20/71

AP8206310

Not Available

2

Spacer D13x30x4

AP8206267

$18,12 Unit Price incl. VAT

3

Tamb. embr.alu

AP8206256

Not Available

4

Washer D12

AP8206271

$5,20 Unit Price incl. VAT

5

Disque embrayage mené

AP8206247

$18,14 Unit Price incl. VAT

6

Driving clutch disc

AP8206322

Not Available

7

Clutch pressure plate

AP8206248

Not Available

8

Nut M14x1,25x6

AP8502432

Not Available

9

Clutch spring

AP8206545

Not Available

9

Clutch spring

AP8206258

Not Available

10

Washer D5x15x2

AP8206272

Not Available

11

Screw

AP8206279

Not Available

12

Adjuster screw M14x1,25

AP8502533

$5,90 Unit Price incl. VAT

13

Nut M12x1,25x7

AP8206265

$4,36 Unit Price incl. VAT

14

Joint couvercle

AP8206287

$15,74 Unit Price incl. VAT

15

Balance shaft driven gear Z=34

AP8206253

Not Available

16

Blue steel washer D12,3x22

AP8206344

$3,65 Unit Price incl. VAT

17

Nut M12x1 H=5

AP8206266

$3,65 Unit Price incl. VAT

18

Flanged nut M12x1,25

AP8206343

$10,95 Unit Price incl. VAT

19

Balance shaft driv. Gear Z=34

AP8206308

Not Available

20

Balance shaft gear cpl.

AP8125913

Not Available

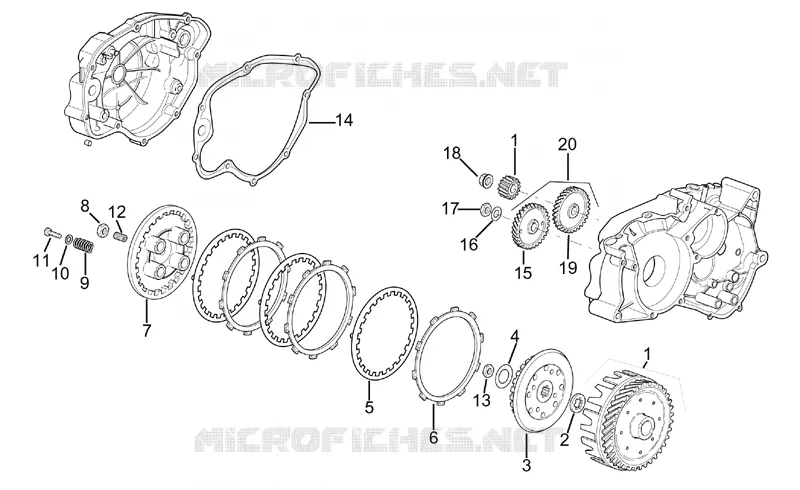

Find the detailed Clutch APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
