Cylinder head - valves FOR Shiver PA FROM 2015

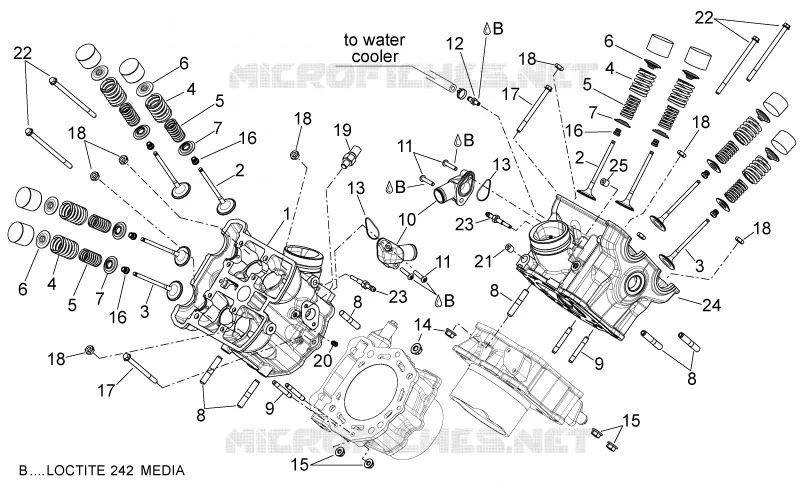

Cylinder head - valves

1

Cylinder head assy.

83038R

$1 781,51 Unit Price incl. VAT

2

Intake valve

846923

$7,16 Unit Price incl. VAT

3

Exhaust valve

873459

$28,33 Unit Price incl. VAT

4

Ext. valve spring

873005

$5,44 Unit Price incl. VAT

5

Int. valve spring

873006

$7,27 Unit Price incl. VAT

6

Upper cup

874933

$1,62 Unit Price incl. VAT

7

Lower cup

846925

$2,68 Unit Price incl. VAT

8

Exhaust pipe stud bolt

B017636

Not Available

9

Stud bolt

872807

$2,16 Unit Price incl. VAT

10

Water outlet union

B014754

$29,51 Unit Price incl. VAT

11

Screw w/ flange

855799

$0,34 Unit Price incl. VAT

12

Joint

873396

$7,20 Unit Price incl. VAT

13

Gasket

878705

$0,63 Unit Price incl. VAT

14

Flanged nut

872434

$0,29 Unit Price incl. VAT

15

Flanged nut

872816

$0,09 Unit Price incl. VAT

16

Valve gasket ring

436438

$1,34 Unit Price incl. VAT

17

Screw w/ flange

872433

$0,38 Unit Price incl. VAT

18

Nut M10x1,25 6H

833520

$0,42 Unit Price incl. VAT

19

Temp. Sensor

58299R

$76,85 Unit Price incl. VAT

20

Plug M6x10

842360

$0,75 Unit Price incl. VAT

21

Plug M12x1,5

411311

$0,67 Unit Price incl. VAT

22

Screw w/ flange

872424

$3,70 Unit Price incl. VAT

23

Joint

872948

$25,70 Unit Price incl. VAT

24

Cylinder head assy.

83036R4

Not Available

25

Plug M10x1,25

842507

$0,48 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
