1
Engine displacement
1000
2
Model
SL-FALCO
3
Year
2002
4
Trim
SL Falco
5
Parts Catalog
Clutch pump
6
Parts Diagram
Parts Catalog
Handlebar
by
Front master cilinder
Clutch pump
1
2
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
15
16
17
18
19
20
21
22
23
24
1
Oil tank plate
AP8134394
$7,23 Unit Price incl. VAT
2
Gasket
AP8121915
Not Available
3
Vis tuyau huile
AP8113003
$3,65 Unit Price incl. VAT
4
Bored screw
AP8113762
$3,65 Unit Price incl. VAT
5
Capuchon reniflard (20 pcs)
AP8113230
$14,66 Unit Price incl. VAT
6
Air bleed valve
AP8113761
Not Available
7
Levier embrayage;
AP8113758
$187,65 Unit Price incl. VAT
8
U-bolt
AP8113759
$18,75 Unit Price incl. VAT
9
Clutch pump
AP8106384
Not Available
10
Clutch pipe
AP8113891
Not Available
11
Raccord pompe arrière
AP8213057
$6,80 Unit Price incl. VAT
12
Lever pin
AP8113719
Not Available
13
Clutch command cylinder
AP8106381
Not Available
14
Rubber pipe
AP8144151
Not Available
15
Collier
AP8101595
$0,32 Unit Price incl. VAT
16
Vis bride
AP8152273
$0,16 Unit Price incl. VAT
17
Self-locking nut M5
AP8152306
$3,65 Unit Price incl. VAT
18
Vis bride
AP8152277
$0,25 Unit Price incl. VAT
19
Clutch switch+harness
AP8124398
Not Available
20
Bouchon réservoir
AP8113553
$8,65 Unit Price incl. VAT
21
Réservoir huile cpl
AP8106382
$19,99 Unit Price incl. VAT
22
Hex socket screw M6x45
AP0241821
Not Available
23
Coiffe;
AP8133522
$22,29 Unit Price incl. VAT
24
Joint
AP8106935
$11,06 Unit Price incl. VAT

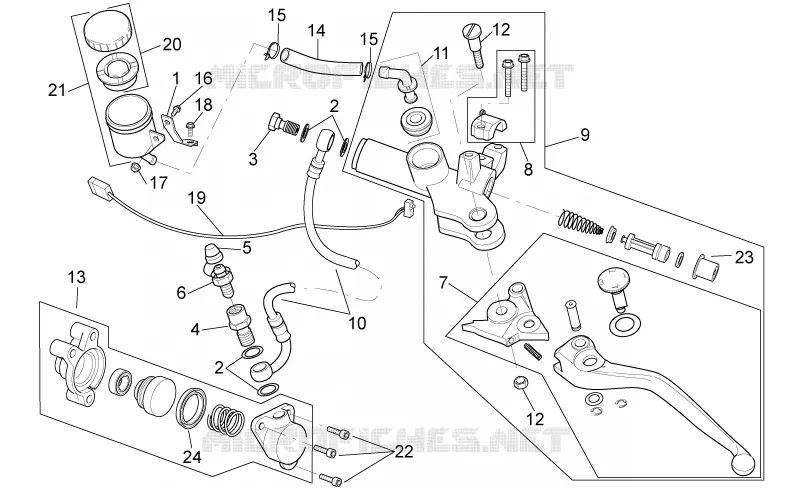

Find the detailed Clutch pump APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
