1
Engine displacement
50
2
Model
SONIC
3
Year
2005
4
Trim
Sonic H2O
5
Parts Catalog

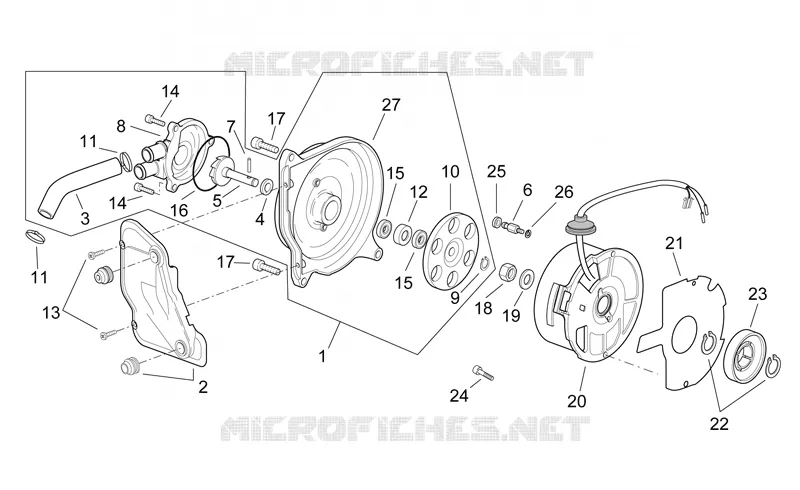

Flywheel - Water pump
6
Parts Diagram
Parts Catalog
Engine
by
Cylinder head
Flywheel - Water pump
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
14
15
15
16
17
17
18
19
20
21
22
23
24
25
26
27
1
Flywheel cover
AP8206589
Not Available
2
Cover+rubber
AP8206822
Not Available
3
Pump-cylinder hose
AP8206573
Not Available
4
Oil seal D10X18X4
AP8509130
$11,06 Unit Price incl. VAT
5
Water pump shaft+Impeller
AP8206576
$23,53 Unit Price incl. VAT
6
Pump impeller pin
AP8206842
Not Available
7
Roller D3x21,8
AP8508669
$3,65 Unit Price incl. VAT
8
Water pump casing, grey
AP8206580
Not Available
9
Outside circlip D8
AP8501467
$3,65 Unit Price incl. VAT
10
Pump impeller drive key
AP8206582
Not Available
11
Hose clamp
AP8206583
Not Available
12
Spacer D21,9x17,5
AP8206584
$5,90 Unit Price incl. VAT
13
Screw
AP8206696
Not Available
14
Screw
AP8509211
Not Available
15
Bearing D8x22x7
AP8206585
$28,21 Unit Price incl. VAT
16
O-ring D53,7x1,78
AP8206586
$3,65 Unit Price incl. VAT
17
Screw M6x25
AP8206508
Not Available
18
Nut M10x1,25
AP8206183
Not Available
19
Washer D10,5x18x2
AP8206205
Not Available
20
Cdi magneto assy
AP8206462
Not Available
21
Flyw. stator gasket
AP8206485
Not Available
22
Outside circlip D19
AP8206179
Not Available
23
Oil pump drive gear
AP8206746
Not Available
24
Screw M6x16
AP8502563
Not Available
25
Pump drive pin grommet
AP8206572
Not Available
26
Washer D6
AP8206192
Not Available
27
Flywheel cover
AP8206569
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
