1
Engine displacement
250
2
Model
SPORT-CITY
3
Year
2006
4
Trim
Sport City E3
5
Parts Catalog
Clutch
6

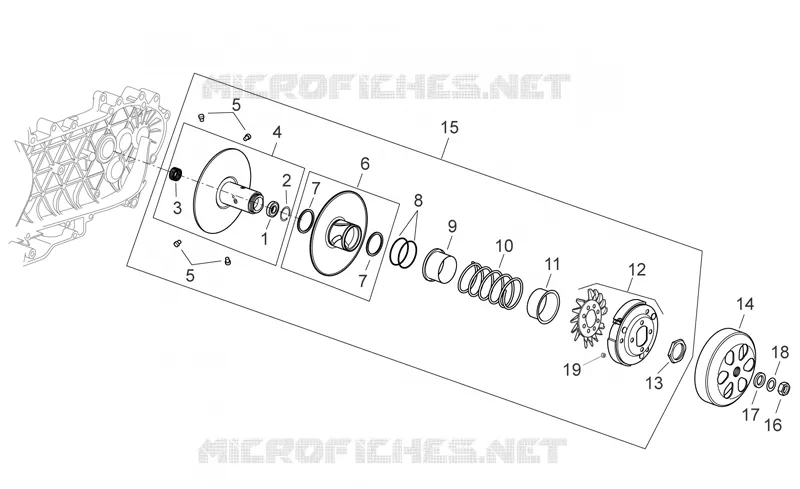

Parts Diagram
Parts Catalog
Air box
by
Top box support
Clutch
1
2
3
4
5
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Roller cage 20x29x18
AP8110104
Not Available
2
Snap ring
AP8580068
Not Available
3
Bearing 17x30x7
AP8125893
Not Available
4
Sec. fixed sheave, complete
AP8580208
Not Available
4
Sec. fixed sheave, complete
AP8575013
Not Available
5
Guide pin L=12,5
AP8580166
Not Available
6
Sec. sliding sheave, complete
AP8580139
Not Available
6
Sec. sliding sheave, complete
AP8580209
Not Available
6
Sec. sliding sheave, complete
AP8577055
Not Available
7
Gasket ring
AP8550124
$4,82 Unit Price incl. VAT
8
Gasket
AP8550116
Not Available
9
Cup
AP8580211
Not Available
9
Cup
AP8176301
Not Available
10
Variator spring
AP8580119
Not Available
10
Variator spring
AP8580210
Not Available
11
Cup
AP8550114
Not Available
12
Centrifugal clutch assy
AP8580171
Not Available
12
Centrifugal clutch assy
AP8590027
Not Available
12
Centrifugal clutch assy
AP8176394
Not Available
13
Ring nut
AP8550111
Not Available
14
Clutch drum
AP8577095
Not Available
15
Secondary pulley
AP8176339
Not Available
15
Secondary pulley
AP8590004
Not Available
15
Secondary pulley
AP8176300
Not Available
16
Nut
AP8580095
Not Available
17
Spacer
AP8580145
Not Available
18
Washer
AP8580062
Not Available
19
Damper drift
431098
$0,87 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
