1
Engine displacement
200
2
Model
SPORT-CITY
3
Year
2008
4
Trim
Sport City E3
5
Parts Catalog

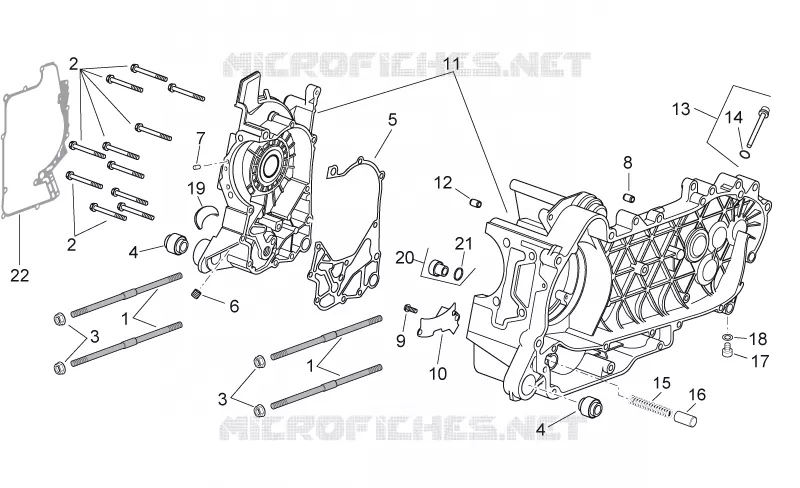

Crankcase
6
Parts Diagram
Parts Catalog
Front body - Internal shield
by
Variator cover
Crankcase
1
1
2
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Stud bolt
840332
Not Available
2
screw
AP8550283
Not Available
3
Cap nut
832870
$1,58 Unit Price incl. VAT
4
Silent-block
AP8220617
Not Available
5
Gasket
AP8553003
Not Available
6
Cover M12x1,5
AP8560014
Not Available
7
Nozzle
AP8560017
Not Available
8
Pin d.9,5 h=15
AP8550107
Not Available
9
screw
AP8560009
Not Available
10
plate
AP8580167
Not Available
11
Crankcase assy
AP8176268
Not Available
11
Crankcase assy
AP8176269
Not Available
11
Crankcase assy
AP8176313
Not Available
11
Crankcase assy
AP8176312
Not Available
12
Locating dowel
AP8551015
Not Available
13
Oil level rod cpl.
AP8550586
Not Available
14
O-ring
AP8550334
Not Available
15
Valve spring
AP8580087
Not Available
16
Oil pressure valve
AP8560142
Not Available
17
Transm.oil unload screw
AP8550361
Not Available
18
Alloy washer
AP8550304
Not Available
19
Intake oil cup
AP8575007
Not Available
20
Filter support insert
AP8268523
Not Available
21
Gasket
AP8550117
Not Available
22
Gasket
AP8577008
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
