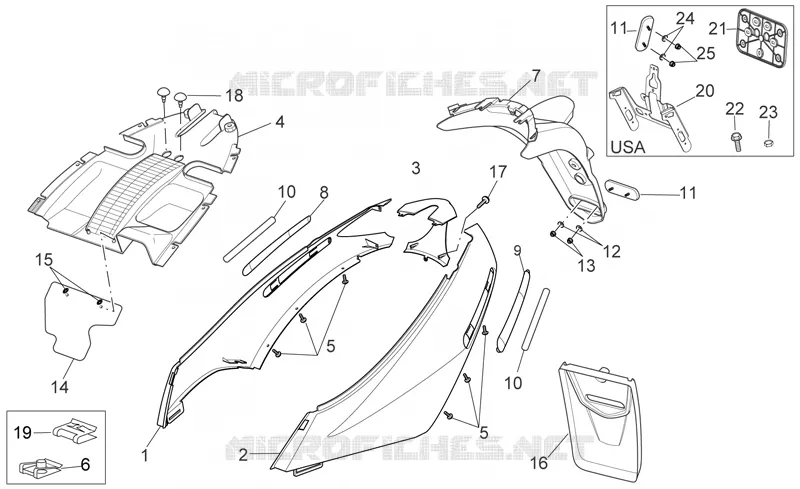

Rear body II FOR Sport City E3 FROM 2007

Rear body II

1

RH rear fairing, black

AP8179816

$115,43 Unit Price incl. VAT

1

RH rear fairing, cyan

AP8268599

Not Available

1

RH rear fairing, grey

AP8179751

$115,43 Unit Price incl. VAT

1

RH rear fairing, black

AP8184466

Not Available

1

RH rear fairing, white

AP8184526

Not Available

1

RH rear fairing, blue

AP8179805

$115,43 Unit Price incl. VAT

1

RH rear fairing, grey

AP8179794

$115,43 Unit Price incl. VAT

2

LH rear fairing, cyan

AP8268600

Not Available

2

LH rear fairing, white

AP8184527

Not Available

2

LH rear fairing, grey

AP8179752

$115,43 Unit Price incl. VAT

2

LH rear fairing, blue

AP8179806

$115,43 Unit Price incl. VAT

2

LH rear fairing, black

AP8184467

$115,43 Unit Price incl. VAT

2

LH rear fairing, black

AP8179817

$115,43 Unit Price incl. VAT

2

LH rear fairing, grey

AP8179795

$115,43 Unit Price incl. VAT

3

Central Rear fairing, black

AP8178106

Not Available

4

Rear fairing, black

AP8179359

$15,98 Unit Price incl. VAT

5

Screw w/ flange M5x16

AP8152298

$0,21 Unit Price incl. VAT

6

Clip M5

AP8102375

$0,69 Unit Price incl. VAT

7

Number plate holder, black

AP8156231

Not Available

8

RH bumper

AP8179703

$17,83 Unit Price incl. VAT

9

LH bumper

AP8179704

$17,83 Unit Price incl. VAT

10

Name plate SportCity Cromo

AP8166438

$25,95 Unit Price incl. VAT

11

Rear reflector, red

AP8124718

$4,12 Unit Price incl. VAT

12

Washer 4,3x16*

AP8150159

$3,65 Unit Price incl. VAT

13

Nut M4

AP8150204

$0,51 Unit Price incl. VAT

14

Rear guard

AP8178885

$5,38 Unit Price incl. VAT

15

Washer for shafts D5

AP8150450

$0,25 Unit Price incl. VAT

16

Rear splash guard

AP8156185

Not Available

17

Self-tapping screw *

AP8150362

$3,70 Unit Price incl. VAT

18

Rubber spacer

AP8706409

$6,30 Unit Price incl. VAT

19

Screw clip D5,5*

AP8201764

$3,65 Unit Price incl. VAT

20

Maintenance indi.dire.

853039

Not Available

21

Number plate support

AP8149034

$17,83 Unit Price incl. VAT

22

Screw w/ flange M6x35

AP8152282

$0,51 Unit Price incl. VAT

23

Self-locking nut M6

AP8152299

$0,34 Unit Price incl. VAT

24

Washer 4,3x16*

AP8150159

$3,65 Unit Price incl. VAT

25

Nut M4

AP8150204

$0,51 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
