1
Engine displacement
200
2
Model
SPORT-CITY
3
Year
2006
4
Trim
Sport City E2
5
Parts Catalog

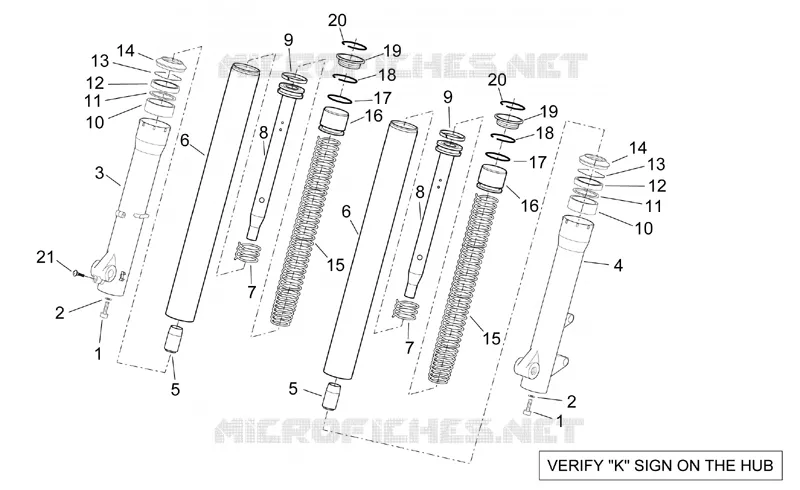

Kaifa front fork - Hubs, sleeves
6
Parts Diagram
Parts Catalog
Transmission
by
Top box support
Kaifa front fork - Hubs, sleeves
1
1
2
2
3
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
1
screw M10x30
AP8163285
$3,65 Unit Price incl. VAT
2
Seal washer
AP8163435
Not Available
3
RH sleeve
AP8163287
$65,78 Unit Price incl. VAT
4
LH sleeve
AP8163288
$65,78 Unit Price incl. VAT
5
Stroke limit stop
AP8163289
$6,30 Unit Price incl. VAT
6
Sleeve
AP8163480
Not Available
7
Return spring
AP8163291
$5,38 Unit Price incl. VAT
8
Shock absorber
AP8163479
$22,29 Unit Price incl. VAT
9
Ring
AP8163293
Not Available
10
Bush
AP8163294
Not Available
11
Oil seal washer
AP8163295
$3,65 Unit Price incl. VAT
12
Oil seal
AP8163296
$5,53 Unit Price incl. VAT
13
Stop ring
AP8163297
Not Available
14
Dust cover
AP8163298
$6,38 Unit Price incl. VAT
15
Spring
AP8163478
Not Available
16
Cover
AP8163300
Not Available
17
O-ring
AP8163301
$3,65 Unit Price incl. VAT
18
Stop ring
AP8163302
Not Available
19
Cover
AP8163303
$5,38 Unit Price incl. VAT
20
Stop ring
AP8163304
Not Available
21
screw
AP8163305
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
