1
Engine displacement
750
2
Model
DORSODURO
3
Year
2015
4
Trim
Dorsoduro ABS
5
Parts Catalog

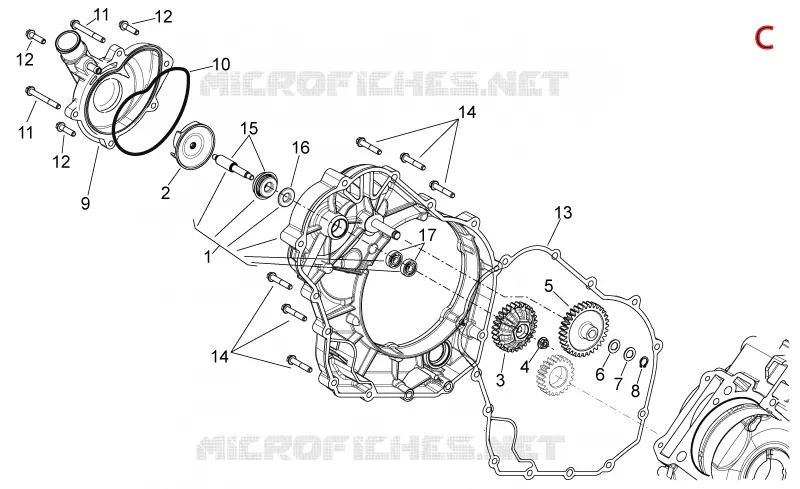

Water pump I
6
Parts Diagram
Parts Catalog
Fron fork II
by
Valves cover
Water pump I
17
16
15
14
14
13
12
12
12
11
11
10
9
8
7
6
5
4
3
2
1
1
Clutch side cover
871657
$520,96 Unit Price incl. VAT
2
Rotor
880867
Not Available
3
Water pump driven gear
871180
$24,18 Unit Price incl. VAT
4
Flanged nut
872816
$0,09 Unit Price incl. VAT
5
Intermediate gear
8743975
Not Available
6
Flat washer
848280
$0,29 Unit Price incl. VAT
7
Flat washer
873473
$0,33 Unit Price incl. VAT
8
Gasket ring
006410
$2,74 Unit Price incl. VAT
9
Water pump cover
871068
Not Available
10
Gasket OR
848209
Not Available
11
Screw w/ flange
872422
$0,19 Unit Price incl. VAT
12
Screw w/ flange
871094
$0,76 Unit Price incl. VAT
13
Gasket
874619
$10,52 Unit Price incl. VAT
14
Screw w/ flange
872117
Not Available
15
Water pump rod with U.P.
873497
Not Available
16
Gasket ring 12-20-5
871258
$3,50 Unit Price incl. VAT
17
Radial ball bearing
871255
$4,85 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
