Front body - Front fairing FOR SR FROM 2000

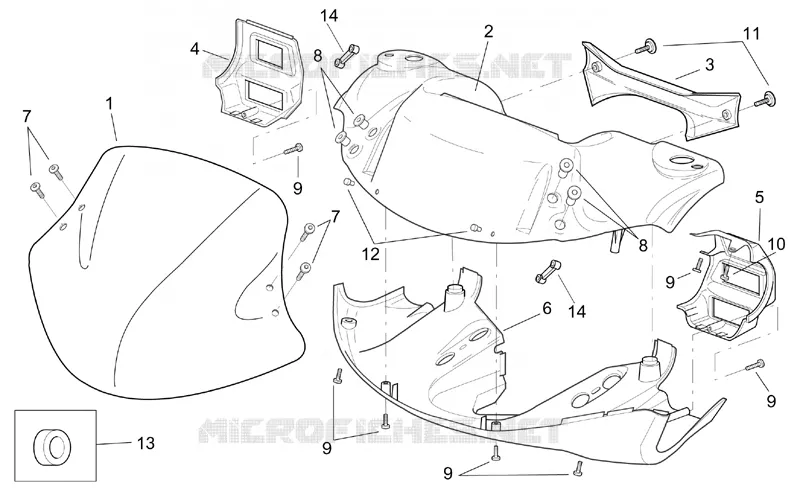

Front body - Front fairing

1

Blue front fairing windshield

AP8249698

Not Available

1

Blue front fairing windshield

AP8238345

Not Available

2

Dashboard panel, fl.green

AP8148411

Not Available

2

Dashboard panel, fl.red

AP8148504

Not Available

2

Dashboard panel, a.silver

AP8139706

Not Available

2

Dashboard panel, hot red

AP8149300

Not Available

2

Dashboard panel, e.blue

AP8149301

Not Available

2

Dashboard panel, night blue

AP8148401

Not Available

2

Dashboard panel, nik.grey

AP8258091

Not Available

2

Dashboard panel, black

AP8158085

Not Available

2

Dashboard panel, fl.red

AP8148499

Not Available

3

Handlebar plate, met.black

AP8249879

$24,14 Unit Price incl. VAT

3

Handlebar plate met.grey

AP8248147

$24,14 Unit Price incl. VAT

4

RH pushb.black supp.

AP8139702

$6,30 Unit Price incl. VAT

5

LH pushb.supp.

AP8139703

Not Available

6

Under dash, grey

AP8148380

Not Available

6

Under dash, met.black

AP8248653

$33,81 Unit Price incl. VAT

7

Hex socket screw

AP8225369

$3,65 Unit Price incl. VAT

7

Hex socket screw

AP8152269

$3,70 Unit Price incl. VAT

8

Rubber w/ insert

AP8120531

$6,30 Unit Price incl. VAT

9

Self-tap screw 3,9x14

AP8150413

$0,08 Unit Price incl. VAT

10

Self-tapping screw *

AP8150420

$3,65 Unit Price incl. VAT

11

Screw w/ flange M5x12

AP8152302

Not Available

12

Mushroom rubber

AP8220488

$4,92 Unit Price incl. VAT

13

Dashboard lockup

AP8148454

Not Available

14

Spacer

AP8225367

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
