1
Engine displacement
750
2
Model
DORSODURO
3
Year
2013
4
Trim
Dorsoduro Factory ABS
5
Parts Catalog
Steering
6
Parts Diagram
Parts Catalog
Front brake caliper
by
Foot rests
Steering
1
2
2
3
4
5
6
7
8
9
9
10
10
11
11
11
11
12
12
13
14
14
15
16
16
16
1
Base avec tube
856496
$366,46 Unit Price incl. VAT
2
Vis tcc
AP8150540
$5,27 Unit Price incl. VAT
3
Rondelle;
AP8121307
$22,46 Unit Price incl. VAT
3
Rondelle
897648
$24,58 Unit Price incl. VAT
4
Roulement à rouleaux
AP8110106
$43,20 Unit Price incl. VAT
5
Bague d'étanchéité;
AP8144146
$10,95 Unit Price incl. VAT
6
Bague
AP8163500
$8,91 Unit Price incl. VAT
7
Rondelle bouchon fourreau
AP8152442
$1,37 Unit Price incl. VAT
8
BOUCHON
853470
$12,41 Unit Price incl. VAT
9
Vis
AP8150049
$3,70 Unit Price incl. VAT
10
Cup
AP8123511
Not Available
11
Caoutchouc
AP8144222
$6,73 Unit Price incl. VAT
12
Cavalier
852493
$21,59 Unit Price incl. VAT
13
Fork upper plate
856498
$300,77 Unit Price incl. VAT
13
Plaque sup. fourche
898386
Not Available
14
ENTRETOISE
854827
$3,70 Unit Price incl. VAT
15
Bague d'étanchéité
AP8104597
$8,01 Unit Price incl. VAT
15
Bague d'étanchéité inf.
AP9100205
$5,20 Unit Price incl. VAT
16
Vis
AP8150236
$0,55 Unit Price incl. VAT
16
VIS TCEI M 8 X 30
AP8152187
$3,65 Unit Price incl. VAT

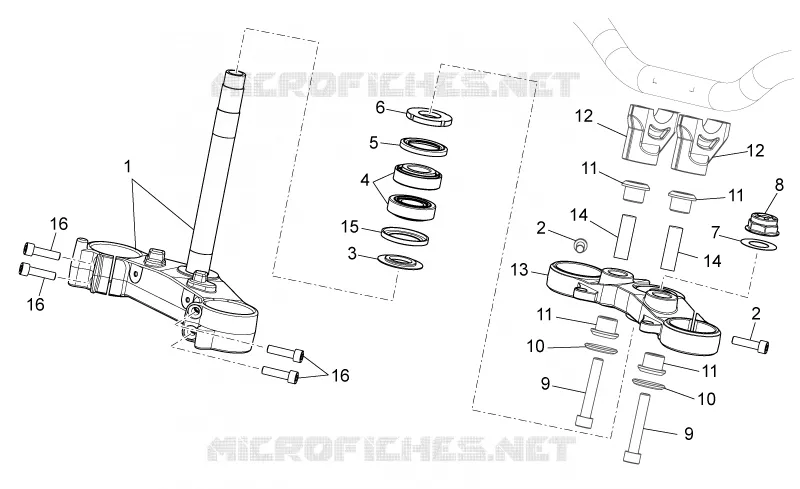

Find the detailed Steering APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
